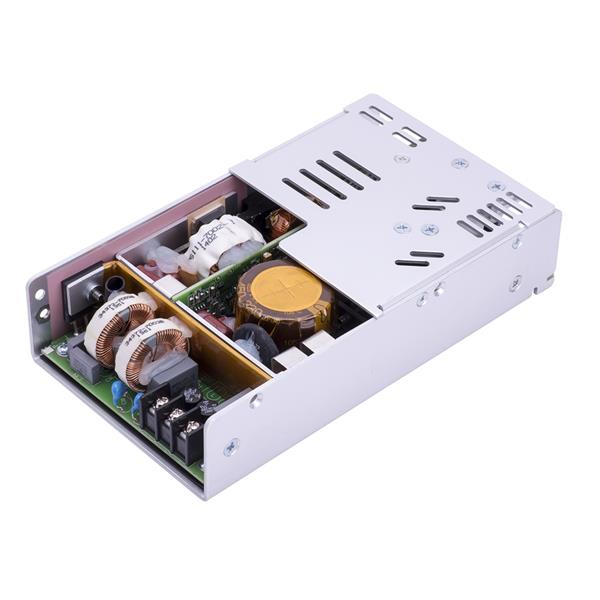

Nguồn Switching 400W 80V-270V MED 48V 8.3A 1ĐẦU SL Power MINT1400A4810L01

Sản phẩm ngừng sản xuất- thay thế bằng model NGB425S48K

Width: 100.076 mm (3.94 in)

Height: 40.132 mm (1.58 in)

Length: 177.8 mm (7 in)

Industry: Medical

Approvals: EN60601-1, UL60601-1

Compliance: EN60601-1, UL60601-1

Efficiency: 91 %

Output Power: 400 W

Input Voltage: 80 VAC to 270 VAC

Cooling Method: Convection, Air-Cooled

Mounting Style: Chassis

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 270 VAC

Input Voltage - Min: 85 VAC

Output Current-Channel 1: 5.2 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
