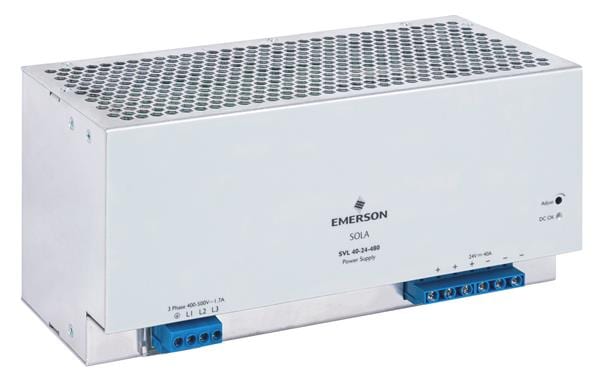

Nguồn chuyển mạch 960W 24V 40A DIN 3 pha 320-600Vac SolaHD SVL 40-24-480

Width: 255 mm (10.039 in)

Height: 121 mm (4.764 in)

Length: 117.3 mm (4.618 in)

Industry: Industrial

Dimensions: 117.3 mm x 255 mm x 121 mm

Input Type: 3-Phase / Three Phase

Unit Weight: 2.599 kg

Output Power: 960 W

Input Voltage: 320 VAC to 600 VAC, 360 VAC to 600 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 40 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 25 C
