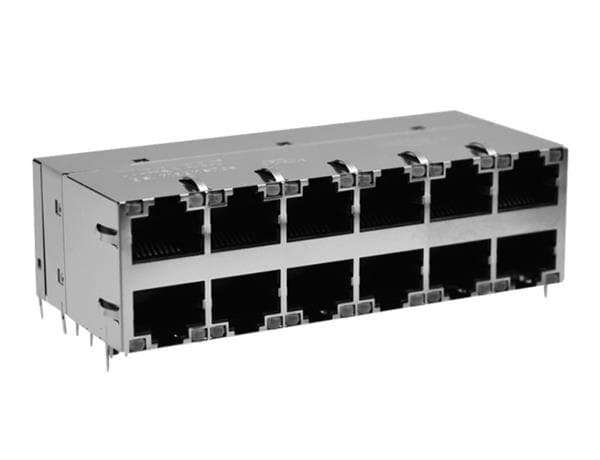

Con đội từ Stewart Connector 1840326-1

Color: Black

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: 10/100/1000 Base-T

Configuration: 2x6

Mounting Type: PCB Mount

Tab Direction: Tab Up and Tab Down

Mounting Angle: Right Angle

Mounting Style: Through Hole

Contact Plating: Gold

LED L / R Color: Green / Green

Number of Ports: 12 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Mounting Direction: Vertical

Flammability Rating: UL 94 V-0

Number of Positions: 96 Position

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C

Number of Positions / Contacts per Port: 8P8C
