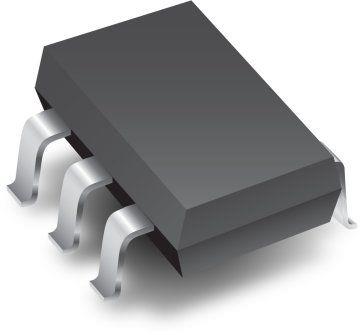

Bộ Giám Sát Điện Áp SUPERVISOR STMicroelectronics STM6719TZWB6F

Width: 1.6 mm

Height: 1.15 mm

Length: 2.9 mm

Features: Internal Hysteresis

Output Type: Active Low, Open Drain

Unit Weight: 36 mg

Manual Reset: Manual Reset

Mounting Style: SMD/SMT

Watchdog Timers: No Watchdog

Reset Delay Time: 210 ms

Threshold Voltage: 2.313 V, 3.075 V, Adjustable

Chip Enable Signals: No Chip Enable

Power Fail Detection: No

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: - 300 mV

Overvoltage Threshold: 3.15 V, 2.375 V

Pd - Power Dissipation: 675 mW

Undervoltage Threshold: 3 V, 2.25 V

Battery Backup Switching: No Backup

Operating Supply Current: 11 uA

Number of Inputs Monitored: 3 Input

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
