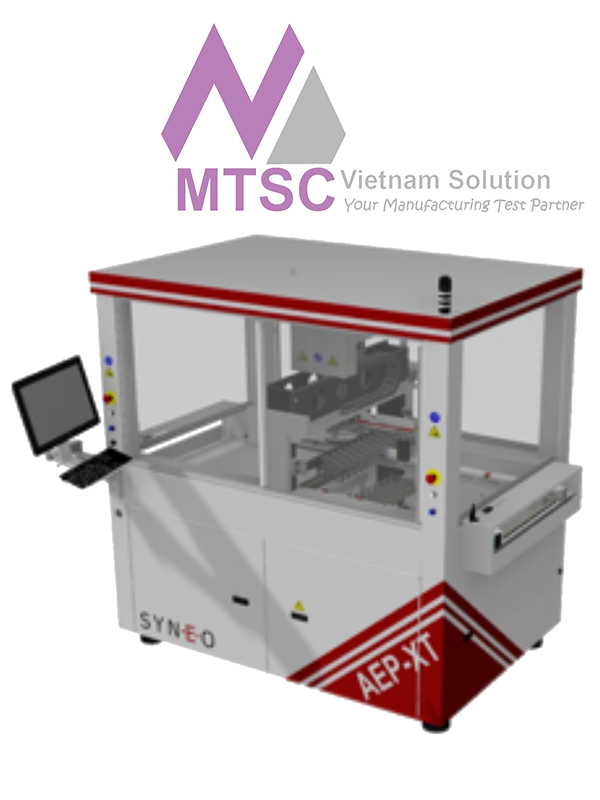

Máy ép đầu nối SYNEO AEP-XT

Hãng sản xuất: SYNEO

Model: AEP-XT

Bảo hành: 12 tháng

48% smaller footprint than previous AEP’s

Automatic Board Width Adjustment

Automatic Vision Alignment System

(TDM) True Distance Measurement to prevent folding pins

Accommodates a backplane carrying high speed connector

Uses Dedicated Bottom Fixtures OR Individual Bottom Tool

Extremely Flexible with Changeover times of less than 1 minute

True SMEMA Interface – no expensive buffer needed

CAD Import system to quickly transfer press position information

Common Software with 1 Click Recipe Transfer Between Machines

Automatic Profile generation – NO MORE PROFILES TO WRITE

Industry 4.0 Ready

Machine Model: AEP-XT

Press Force: 3 Tons

True Distance Measurement (TDM): Yes - 0.001 Resolution

Board Size: 914mm x 610mm x 12mm

Connector Size: 150mm x 50mm

Dimensions: 2.3m x 1.2m x 2.3m
