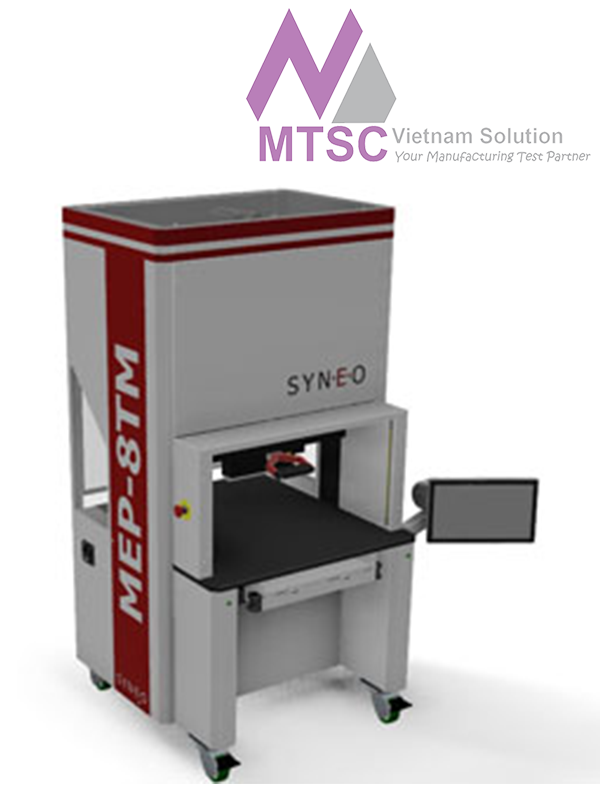

Máy ép đầu nối SYNEO MEP-8TM

  • Hãng sản xuất: SYNEO
    Model: MEP-8TM
    Xuất xứ: Mỹ (USA)
    Bảo hành: 12 tháng
    • Yêu cầu báo giá Yêu cầu báo giá
  • Liên hệ
  • Gọi để có giá tốt

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

Hãng sản xuất: SYNEO

Model: MEP-8TM

Bảo hành: 12 tháng

Opening 91 CM x 91 CM deep (36" x 36")

PCB 76 CM x 91 CM (30" x 36")

All electric press, hi-frame design

8-ton capacity

Windows PC control with touchscreen monitor, keyboard, mouse

Full force available throughout travel

Head is manually moveable throughout opening

Flat rock press head 305 MM x 38 MM (12" x 1.5")

Teflon Hard Coat aluminum table

Two-hand safety actuation

Press to force or height with error detection

Dynamic force adjustment using PAST, PAR or FAT

Fully automatic setup, no manual adjustments

Board thickness measurement

220 VAC 1 phase, 20 Amps, 50/60 Hz

Air 80 psi for air table & sliding head air bearing

2,300 lbs. approx. weight

Shipping : 1 pallet, 190 CM x 170 CM x 196 CM high, 1900 lbs

Press Force: 8 Tons

Two Stage Force(2SF): YES

True Distance Measurement (TDM): YES

Board Size: 830mm x 1060mm

Press Anvil Size: 279mm x 38mm

Dimensions: 1095 x 1095 x 1855mm

Chi tiết

Core Competencies

SYNEO designs and manufactures machinery and tooling solutions that address a broad array of material processing applications through two distinct industry verticals: Medical Manufacturing Solutions and Electronics Manufacturing (Pressfit) Solutions.

Medical Manufacturing

SYNEO’s machine solutions focus on improving processes such as automated cutting, feeding, hole-making, drilling, slitting, flaring, grinding and other material marking processes. SYNEO draws on its standard machine platforms and robust technical resources and machine design history to provide standard and customized solutions to our customers. Whether it’s an isolated application or an integration and automation of multiple processes, SYNEO has the capabilities to bring enhanced efficiency, productivity and quality to catheter and guidewire manufacturing processes.

SYNEO’s cutting tool solutions target drilling and hole-punching applications for catheter and surgical device applications. Using a proprietary sharpening process, SYNEO offers cutting tools that provide an unparalleled level of cutting sharpness. SYNEO offers its cutting tool solutions on an a la cart basis or in conjunction with a manual or automated drilling application from its Machine division.

Electronics Manufacturing

SYNEO’s Pressfit solutions target advanced manual and automatic pressing needs for high-force and high-precision connector applications. SYNEO’s Pressfit machines bring enhanced levels of control and force measurement that improve efficiency and yields in the manufacturing and assembly of printed circuit boards. SYNEO’s Pressfit machine portfolio is configured for Factory 4.0 connectivity and brings an advanced software suite to the end user.

SYNEO takes pride in providing solutions that fit your needs.
