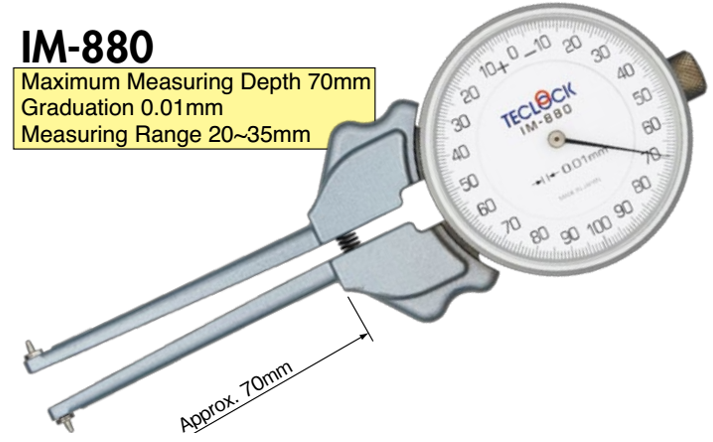

Compa đồng hồ đo trong TECLOCK IM-880 (20~35mm/0.01mm)

Hãng sản xuất: TECLOCK

Model: IM-880

Xuất xứ: Nhật Bản

Bảo hành: 12 tháng


Dải đo: 20~35 mm

Độ chia: 0.01 mm

Sai số: ±0.02 mm

Độ sâu đo tối đa: 70 mm

Độ rộng rãnh đo tối thiểu: 2.5 mm

Lực đo: ≤ 3 N

Trọng lượng: 196 g


Chi tiết

Catalog


 • Internal caliper gauge to measure internal diameter of cylindrical workpiece and recessed groove diameter. It can measure groove diameter of "O" ring by modifying spare contact point.

 • Set dimension within ±1mm (indication range 2mm) can be comparatively measured (880 series) by alternatively using auxiliary spare contact point in accordance with measured dimension.

 • Please set standard dimension within measuring range with micrometer or ring gauge.
