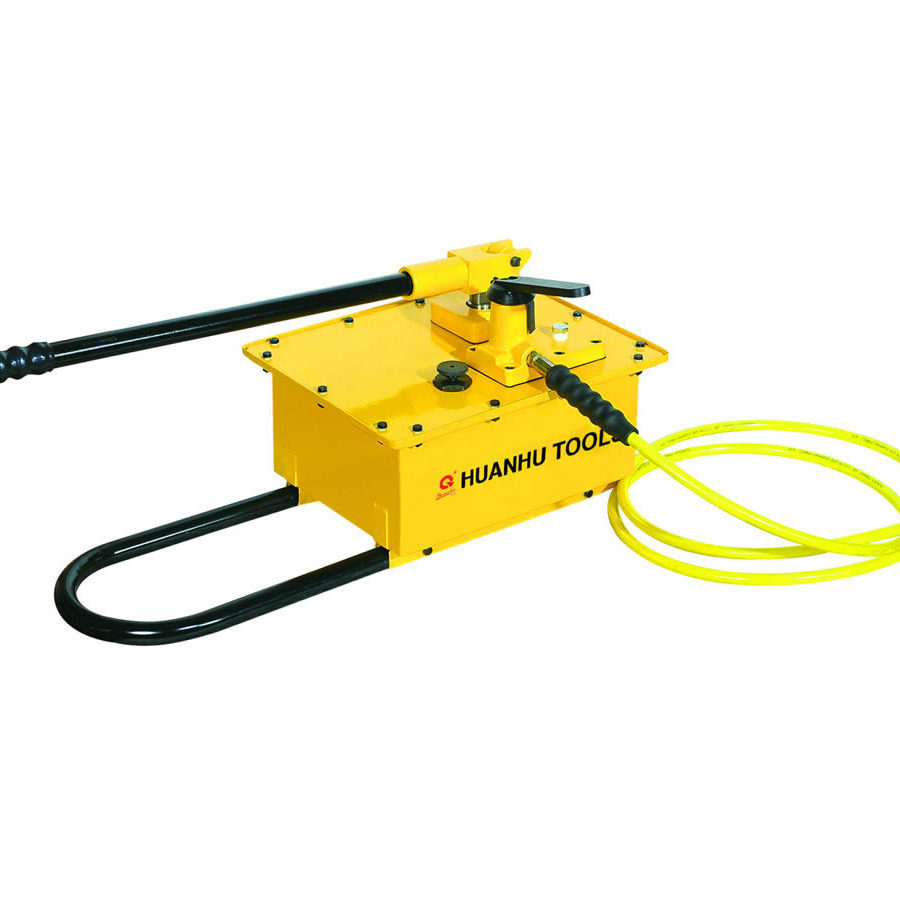

Bơm tay thủy lực TLP HHB-7000 (20 / 700 bar)

Loại bơm: Một chiều

Áp suất làm việc (thấp/cao): 20 / 700 bar

Lưu lượng dầu mỗi hành trình (thấp/cao): 126.2 / 4.75 cm³

Dung tích bình dầu (tổng/sử dụng): 7500 / 7000 cm³

Kích thước (D × R × C): 740 × 310 × 330 mm

Kích thước đóng gói: 83 × 38 × 35 cm

Trọng lượng: 26.5 kg

Characteristics:

Working pressure 700 bar

HHB-7000 is one-way pump for single-acting applications.

HHB-7000S is two-way pump for double-acting applications.

Supplied with high pressure hose 1.8 meters and R2 3/8 quick coupler with dust cap

●HHB-7000 and HHB-7000S feature extra large reservoirs and high first-stage flow rate. These pumps are ideally suited for powering high-capacity cylinders.

●Two-speed hydraulic system for fast and easy operation.

●Large release valve handle for controlling load descent.
