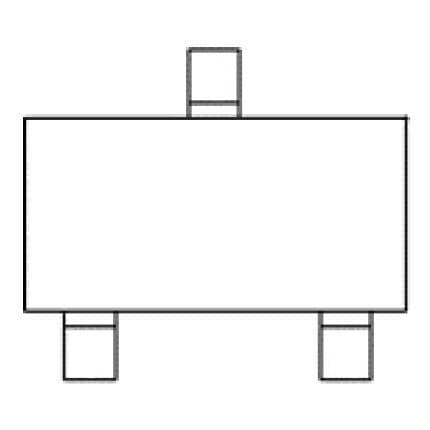

MOSFET kênh P đa dụng, -30V / -0.45A / SOT-23 Torex Semiconductor XP232P0501TR-G

Fall Time: 45 ns

Rise Time: 20 ns

Technology: Si

Unit Weight: 8 mg

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 P-Channel

Number of Channels: 1 Channel

Transistor Polarity: P-Channel

Pd - Power Dissipation: 400 mW

Vgs - Gate-Source Voltage: - 8 V, + 8 V

Typical Turn-On Delay Time: 15 ns

Typical Turn-Off Delay Time: 80 ns

Id - Continuous Drain Current: 450 mA

Maximum Operating Temperature: + 150 C

Rds On - Drain-Source Resistance: 1.25 Ohms

Vds - Drain-Source Breakdown Voltage: 30 V

Vgs th - Gate-Source Threshold Voltage: 1.1 V
