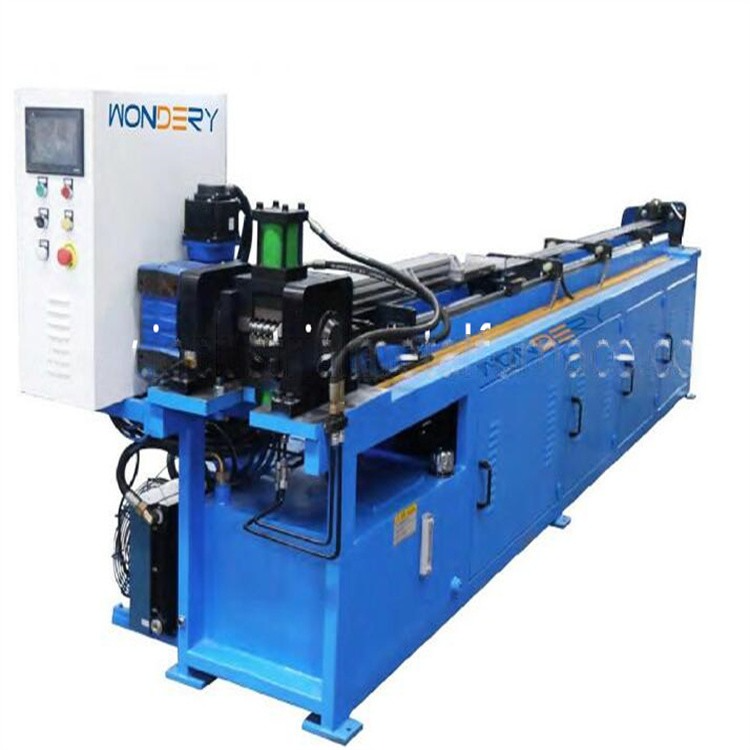

Máy uốn ống kẹp tóc bán tự động Wondery BWJ-3000 (O.D: 9.52/12.7mm; 200-3000mm)

2.1 Structure Characters:

2.1.1 Compact design, Servo motor driving, Manual feeding, Operation in

manual or automatic mode For option

2.1.2 Process of automatic operation mode is material feeding by manual →mould tooling clamping→ oil spraying → bending → mandrel back →

clamp loose → unloading → unloading home → bending tooling home

2.2 Hairpin Leg difference in length less than 0.5mm

2.3 No obvious clashing, abnormal “bump”, corrugation neither other deficiency. Ellipse less than 8%

2.4 Roundness tolerance of bend area <±.012”;

2.5 Parallel tolerance for the two straight legs ≤3%;

2.6 Running and operating smoothly.

3.Performance parameters of machine:

3.1. Working efficiency: 12 seconds per cycle taking 1 meter as example.

Pneumatic air consumption 3.5 cfm

3.2. Air cooled

4.Lubrication system

Expanding rod with lubrication holes and control by solenoid valve which allow oil spray every setting seconds (Injection time can be adjusted)
