Ứng dụng

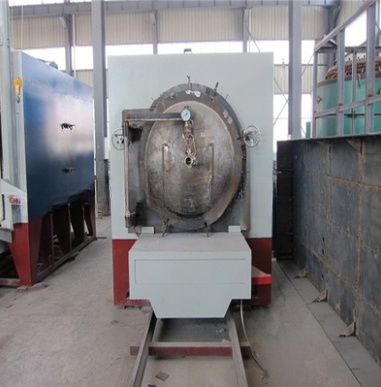

Lò xử lý nhiệt chân không kiểu xe đẩy là lò điện trở hoạt động tuần hoàn, chủ yếu được sử dụng để xử lý nhiệt và gia nhiệt các bộ phận kim loại hoặc hợp kim cỡ vừa và nhỏ nói chung trong khí nitơ dưới 850 ℃. Có ưu điểm là nhiệt độ lò đồng đều, cấu trúc đơn giản, vận hành đơn giản và tiêu thụ năng lượng thấp.
1. Công suất định mức 45KW
2 Điện áp định mức 380V, 3 pha, 50Hz
3. Nhiệt độ định mức 850 ℃
4 Kích thước làm việc (chiều dài, chiều rộng và chiều cao) 1000×800×600mm;
5. Phương pháp kết nối bộ phận gia nhiệt: Có;
6. Chế độ kiểm soát nhiệt độ: Kiểm soát PID;
7. Độ đồng đều của nhiệt độ lò ≤± 10 ℃;
8. Nhiệt độ tăng của thành ngoài ở phía lò ≤ 40 ℃;
9. Thời gian gia nhiệt lò rỗng ≤ 2H;
10. Công suất mất lò rỗng ≤ 18%;
11. Độ chân không 0.001 Torr;
12 Bơm chân không: thương hiệu Trung Quốc chất lượng;
13. Nhiệt độ làm việc: 850 độ
3.Service Conditions
3.1 indoor use;
3.2 There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation around;
3.3 No obvious vibration and turbulence.
4. Structure introduction
The structure of this series of electric heat treatment furnace is composed of furnace shell, furnace lining, heating elements, furnace bottom plate, furnace door device and control system.
The heat treating furnace shell is welded into a box shell with section steel and steel plate, and the furnace is of brick structure. The gap between the furnace and the furnace shell is filled with high-temperature resistant fiber and diatomite bulk material for heat insulation and heat preservation.
The heating element is placed on both sides of the furnace with ocr25al5 resistance wire. The heating element is led out of the furnace body through the lead out rod and connected with the power supply.
Furnace cover: it is equipped with air extraction port (including manual valve), inflation valve (including manual valve), exhaust port (including manual valve), pressure indicator in the furnace and safety valve.
Vacuum furnace muffle tank: it is welded with stainless steel.The upper end surface is embedded with asbestos packing sealing ring, which is embedded with the furnace cover. Manual compression screws are installed along the circumference of the upper end face, which are used to connect the furnace cover and the tank into one to ensure the sealing in the tank.
Vacuum system: The heat treatment furnace and equipment adopts 2x series rotary vane mechanical vacuum pump, which is equipped with vacuum hose and quick connection. See the vacuum pump manual for the structure and operation requirements of the vacuum pump.
There is a thermocouple hole on the furnace top. When in use, the thermocouple is inserted into the furnace to control the working temperature of the furnace through the electric furnace control cabinet.
