1. Tốc độ đo: 1 phút- 2 phút cho cuộn dây một pha
2. Điện áp đầu ra: Vpp-25V, tự động điều chỉnh khi kiểm tra
3. Trở kháng đầu ra: 50Ω
4. Trở kháng đầu vào: 1MΩ (Kênh phản hồi có điện trở phù hợp 50Ω)
5. Dải quét tần số: 10Hz-2 MHz
6. Độ chính xác tần số: 0,001%
7. Phương pháp quét tần số: tuyến tính hoặc logarit, khoảng quét tần số và số điểm quét có thể tự do cài đặt
8. Hiển thị đường cong: đường cong Mag-freq
9. Dải đo động: -100dB~20dB
10. Nguồn cấp: AC100-240V 50/60Hz
Product features:

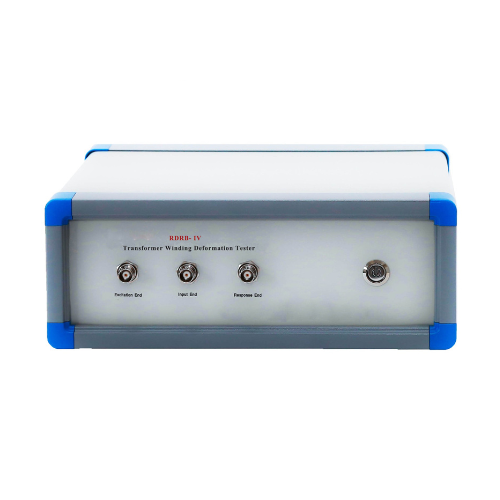

- Characteristics of transformer winding are measured with frequency sweep method. Deformations of windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure or disintegration.
- Quick measuring, measuring of a single winding is within 2 minutes.
- High frequency accuracy, higher than 0.001%.
- Digital frequency synthesis, with higher frequency stability.
- 5000V voltage isolation fully protects safety of the testing computer.
- Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose winding deformations to provide the reference diagnosis conclusion.
- Analysis software has powerful functions and software and hardware indicators satisfy national standard DL/T911-2016/IEC60076-18.
- Software management is humanized with high degree of intelligence. You only need to click one key to complete all measurements after setting of parameters.
