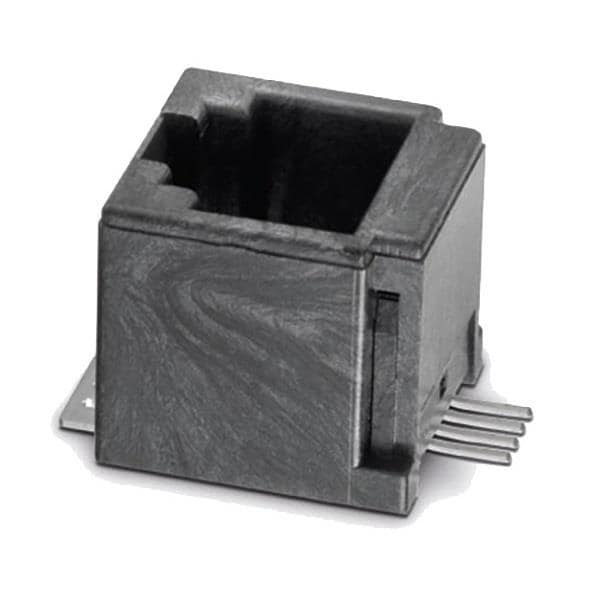

Tab hàn Modular WR-MJ Mod Jk 4P4C có màng Mylar Wurth Elektronik 634104149621

Color: Black

Gender: Jack (Female)

Shielding: Unshielded

USOC Codes: RJ10

Unit Weight: 2.260 g

Configuration: 1x1

Tab Direction: Top Entry

Current Rating: 1.5 A

Mounting Angle: Vertical

Mounting Style: PCB Mount

Voltage Rating: 120 VAC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Copper Alloy

Termination Style: Solder

Number of Contacts: 4 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 4P4C
