(RCT)Phạm vi kháng nhiệt: 0.002-2.0 m²K / W
Độ lặp lại: ≤ +/- 2%
Độ phân giải: 0.001m²K/W
Ret) Phạm vi kháng bay hơi: 0-1000m²Pa / W
Độ lặp lại: ≤ +/-2%
Độ phân giải: 0,001m²K/W
Phạm vi nhiệt độ tấm thử nghiệm: 30 C-40 C có thể điều chỉnh
Độ chính xác kiểm soát nhiệt độ: +/- 0,03 C
Đo nhiệt độ: +/- 0,01 C
Vận tốc không khí: 0 -1.2 m/s có thể điều chỉnh liên tục
Độ chính xác của vận tốc không khí: +/- 1%
Phạm vi nâng nền mẫu: Nâng tự động 0~50mm
Độ dày mẫu: 0~50mm
Diện tích tấm thử: 254mm × 254mm
Kích thước vòng bảo vệ: 512mm × 512mm
Chiều rộng vòng bảo vệ:: 127mm
Kích thước mẫu: 500mmx500mm
Kích thước: 730× 610 × 350mm (L x W x H) (không bao gồm Buồng điều hòa)
Trọng lượng: 45Kg (không bao gồm buồng khí hậu)
Nguồn điện: AC220V +/- 10%, 100W hoặc AC110V +/- 10%, 100W
Product Description

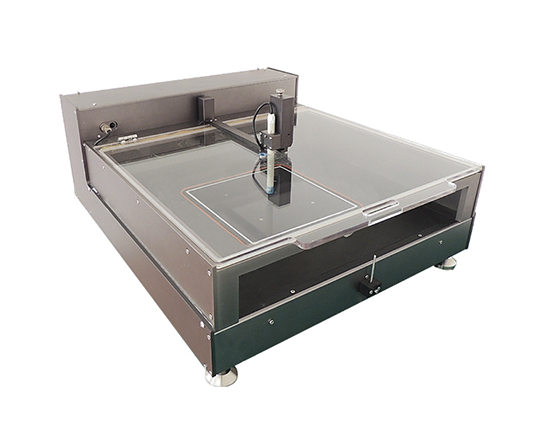

XHF-105 Sweating Guarded Hotplate is the most professional, most advanced Thermal and Evaporative Resistance test instrument,simulate the human skin test plate,Automatic water supply system, Wind speed stabilization system,test host and Climate Chamber completely separated design,Automatically senses the thickness of the test sample.
Principle:
Clothing is often made of materials that impede the flow of heat and moisture from the skin to the environment. Consequently, people may suffer from heat stress or cold stress when wearing clothing in different environmental conditions. Therefore, it is important to quantify the thermal resistance and evaporative resistance of clothing materials and to consider these properties, when selecting materials for different clothing applications.
Product Features
1.The independent design concept, integrated design of control systems and automatic water supply system, users can choose the standard Climate Chamber.
2.Automatic water supply, Automatic drain system, Strong feed water system (In the Evaporative Resistance, water uniformly wets test plate faster)
3.high-precision automatic platform mobile systems, enter the thickness of the test the test platform to move to the corresponding position.
4.According to the thickness of the sample, the machine automatically adjust the PID control parameters, test conditions can quickly reach.
5.The patented Air velocity parallel stabilization system, let the Air velocity homogeneous and stable, so that the test results are more stable.
6.Air velocity continuously adjustable from 0 ~ 1.2m / s to meet any Thermal and Evaporative resistance testing standards.
7.Guard ring width 127mm, to ensure that heat is passed from the test sample.
8.LED soft lighting system.
9. Wifi communication, to make the connection more convenient.
10.Friendly and convenient testing software, test software to configure variety of test standard and user-friendly.
