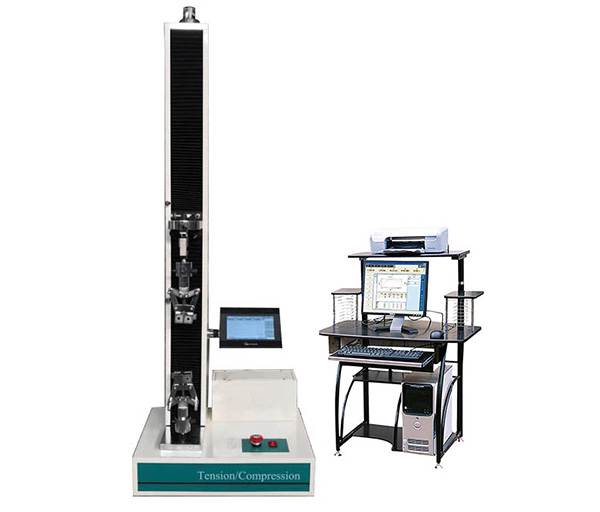

Máy đo độ bền kéo vải XHinstruments XHL-02 (5000N)

Cảm biến tải trọng: 100N, 200N, 50N, 100N, 200N, 500N, 1000N, 2000N, 5000N

Độ chính xác: +/- 0.5% Giá trị chỉ định

Độ phân giải cường độ: 1/500000

Hệ thống truyền động: AC servo

Chuyển đổi đơn vị: Kg, N, KN, LB, mm, Inch

Khoảng cách di chuyển: 700mm (khoảng cách di chuyển khác theo yêu cầu)

Độ phân giải : Tối thiểu 0.001mm

Tốc độ: 0.01mm-500mm/phút (có thể điều chỉnh)

Độ chính xác tốc độ: +/- 1%(0.01-10mm/phút); +/- 0.5%(1-500mm/phút)

Tốc độ thu thập dữ liệu: Tối đa 1000Hz

Đo vị trí: Bộ mã hóa Omron

Phần mềm: Bao gồm phần mềm phân tích và xuất kết quả

Kẹp căng: Theo vật liệu khác nhau

Tấm nén: Đường kính: 100mm

Nguồn: 220V, 50Hz, một cụm từ

Kích thước: 520×380×1600mm

Trọng lượng: 110kg

Product Description

Electric Tensile Strength Tester is professionally applicable to measurement of tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force, pulling force and low speed unwrapping force as well as other properties of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tapes, label stickers, medical plasters, release paper, protective films, combined caps, aluminum foils, diaphragms, back sheets, non-woven fabrics, rubber and paper, etc.

Test Standards

ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.

Product Features

1. Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control

2. Modern linear guide technology, pre-loaded ball screws and advanced software.

3. No special computer required, controller is embeded in the host machine

4. Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.

5. Built-in of test methods meeting international test standards.

6. Pre-load test standards for ASTM standard and ISO standard for foam test

7. All test procedure is carried out easily with our professional software

8. Test automation and batch testing

9. Test creation is provided by software

10. Multi points load is calibrated to ensure calibration is accurate

11. History track function easy to track previous test results according to date, name..etc

11. Adopt stable and reliable servo driving system and servo motor, the adjustable rate can up to 1:100000

12. Adopt high precision load cell to keep measurement more accurate and stable.

13. Automatically detection of the adjustment and calibration by electronic system and software.

13. Data acquisition system consists of or channels high precision A/D conversion channel. The maximum resolution of 1/50000

14. High stiffness structure to 5KN

14. With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop

15. Test results can be directly output, or via bmp, excel, txt...etc

16. Dual Control, Touch Screen Operation and PC Operation

18. Cables Connection is very simple
