Máy kiểm tra vật liệu đa năng XHinstruments XHL-04-50 (50KN) | EMIN.VN

Máy kiểm tra vật liệu đa năng XHinstruments XHL-04-50 (50KN)

Name: Máy kiểm tra vật liệu đa năng XHinstruments XHL-04-50 (50KN)
Brand: XHinstruments

Có sẵn: 0 Cái

Hãng sản xuấtXHinstruments

ModelXHL-04-50

Liên hệ

Số lượng

Thanh toán an toàn

Hỗ trợ chuyên nghiệp

Đổi trả dễ dàng

Giao hàng tận nơi

Lực tải tối đa: 50KN

Phạm vi kiểm tra lực: 0.2%-100% F.S (0.4%-100% F.S)

Độ chính xác của kiểm tra lực: hơn +/- 0.5% giá trị tải hiển thị

Độ phân giải cường độ: +/- 1/500000

Độ phân giải dịch chuyển: 0.04um

Lỗi biến dạng: +/- 0.5%

Phạm vi tốc độ thử nghiệm: 0.01mm-500mm/phút

Loại khung chính: Cột đôi

Không gian căng : 600mm

Không gian nén: 700mm

Chiều rộng kiểm tra: 400mm

Nguồn điện: 110/220V, 50/60Hz

Kích thước: 780x570x1800mm

Trọng lượng: 450Kg

Product Description:

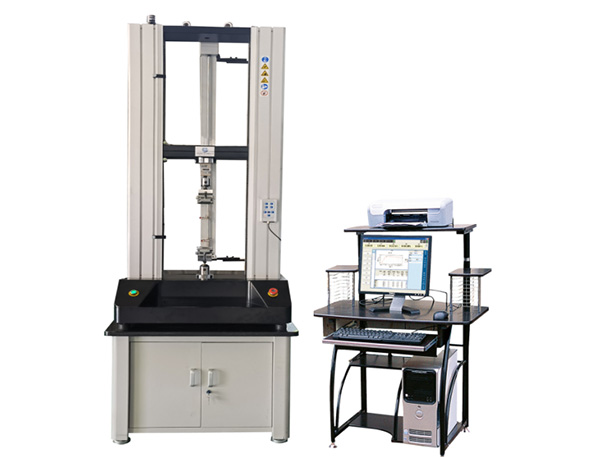

XHL-04 Computer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.

The machine conform to ISO 7500/1 Class1, ASTM E4, BS 1610 Grade 1, DIN 51221 Class1

Test Standards: ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.

Product Features

Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control

Modern linear guide technology, pre-loaded ball screws and advanced software.

Aluminum Alloy Cover make machine looks beautiful .

Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.

Built-in of test methods meeting international test standards.

Pre-load test standards for ASTM standard and ISO standard for foam test

All test procedure is carried out easily with our professional software

Test automation and batch testing

Test creation is provided by software

Multi points load is calibrated to ensure calibration is accurate

History track function easy to track previous test results according to date, name..etc

Adopt stable and reliable servo driving system and servo motor, the adjustable rate can up to 1:100000

Adopt high precision load cell to keep measurement more accurate and stable.

Automatically detection of the adjustment and calibration by electronic system and software.

Data acquisition system consists of or channels high precision A/D conversion channel. The maximum resolution of 1/50000

With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop
