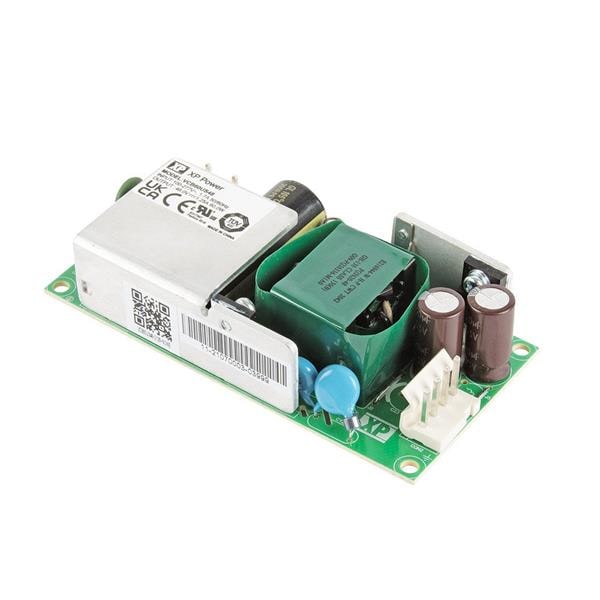

Nguồn chuyển mạch AC-DC 60W chi phí thấp XP Power VCB60US12

Width: 50.8 mm (2 in)

Height: 25.6 mm (1.008 in)

Length: 101.6 mm (4 in)

Industry: ITE, Industrial

Efficiency: 85 %

Output Power: 60 W

Input Voltage: 90 VAC to 305 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
