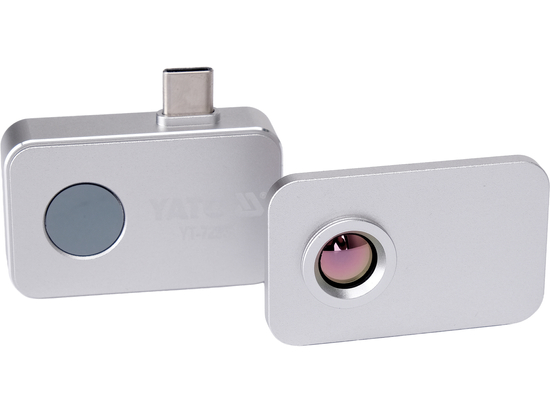

Camera nhiệt dùng cho Smartphone YATO YT-72931 (150-550˚C, 56x42 ˚)

Power: ≤0.35 W

Working range: 0.25–5 m

Temperature measurement range:

−15 ~ +150 / −5 ~ +302 °C/°F

150–550 / 302–1022 °C/°F

Relative operating humidity (Rh): 10–85%

NETD (thermal sensitivity): ≤50 mK @ 25°C

Temperature accuracy:

±3°C (−15 ~ −10°C), ±2°C or ±2% (−10 ~ 550°C)

Functions: operation via dedicated Android application

Measurement modes: point, linear, regional

Charger type: USB Type-C

Dimensions: 45 × 36.7 × 15.4 mm

Viewing angle: 56 × 42°

IFOV: 3.75 mrad

Recording format: JPG (images), MP4 (video)

Sensor type: VOx (vanadium oxide) microbolometer

Color modes: 10 (including rainbow, iron red, warm red, warm white, warm black)

Effective resolution: 512 × 384 px

Sensor resolution: 256 × 192 px

Screen refresh rate: ≤25 Hz

Menu languages: Polish, English, Ukrainian, Russian

Data export: USB Type-C (connection to computer)

Input voltage: 5V DC

Operating temperature: −10 ~ +75 °C

Storage temperature: −45 ~ +85 °C

Weight: 29 g

Application: electrical inspections and detection of overheated connections, thermal bridge and heat loss detection in buildings, HVAC servicing, industrial preventive inspections, car diagnostics, and electronics thermal testing
