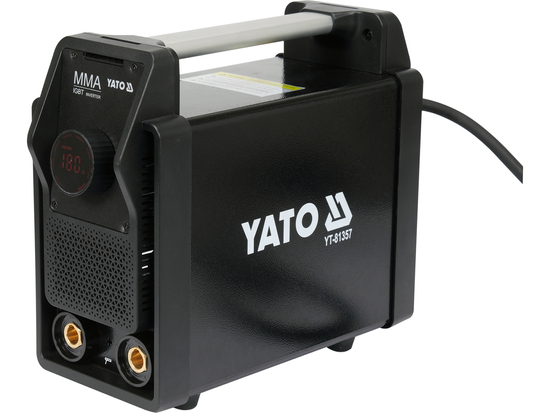

Máy hàn MMA Inverter YATO YT-81357 (180A)

Welder type: IGBT

Max. welding current: 180 (MMA), 180 (TIG Lift) A

Min. welding current: 40 (MMA), 10 (TIG Lift) A

Voltage: 230 V AC

Frequency: 50/60 Hz

Power factor: 0.73

Dimensions: 320 × 138 × 270 mm

Electrode diameter: 1.6–4 mm

Duty cycle: 20%

Power source efficiency: 80%

CPU processor: Yes

VRD voltage reduction system: Yes

Arc force: Yes

Hot start: Yes

Display type: LED, with knob

Display range: 999

Overheat protection: Yes

Anti-stick: Yes

Power generator supply: Yes

Windings insulation class: F

Electrical insulation class: I

Protection rating: IP21S

Weight: 4.52 kg

Set includes: Welder, 300 A grounding clamp with 3 m cable (16 mm²), 200 A electrode holder with 3 m cable (16 mm²), 2.5 m power cord, shoulder strap

Application: Welding with coated electrodes (MMA method) and non-consumable electrodes (TIG Lift method) using direct current; suitable for acid, basic, and cellulose electrodes

Application cont’d: Carbon steel, stainless steel, cast iron, copper, aluminum, and other metals

Welding process: MMA, TIG Lift
