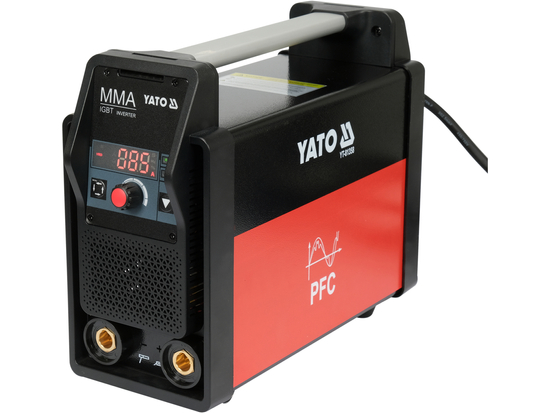

Máy hàn đa năng MMA có PFC YATO YT-81358 (200A)

Welder type: PFC, IGBT

Max. welding current: 85 (MMA), 200 (TIG Lift) A

Min. welding current: 10 (MMA), 10 (TIG Lift) A

Voltage: 115, 230 V AC

Frequency: 50/60 Hz

Power factor: 0.93

Dimensions: 350 × 138 × 270 mm

Electrode diameter: 1.6–4 mm

Duty cycle: 15% (MMA), 25% (TIG Lift)

Power source efficiency: 80%

CPU processor: Yes

VRD voltage reduction system: Yes

Arc force: Yes

Hot start: Yes

Display type: LCD, segmented

Overheat protection: Yes

Anti-stick: Yes

Power generator supply: Yes

Windings insulation class: F

Electrical insulation class: I

Protection rating: IP21

Weight: 6.19 kg

Set includes: Welder, 300 A grounding clamp with 3 m cable (16 mm²), 200 A electrode holder with 3 m cable (16 mm²), 2.5 m power cord, shoulder strap

Application: Welding with coated electrodes (MMA method) using direct current and with non-consumable electrodes (TIG Lift method) using direct or pulsed current; suitable for acidic, basic, and cellulose electrodes

Application cont’d: Steel, stainless steel, cast iron, copper, aluminum, and other metals

Welding process: MMA, TIG Lift, TIG Lift with Pulse
