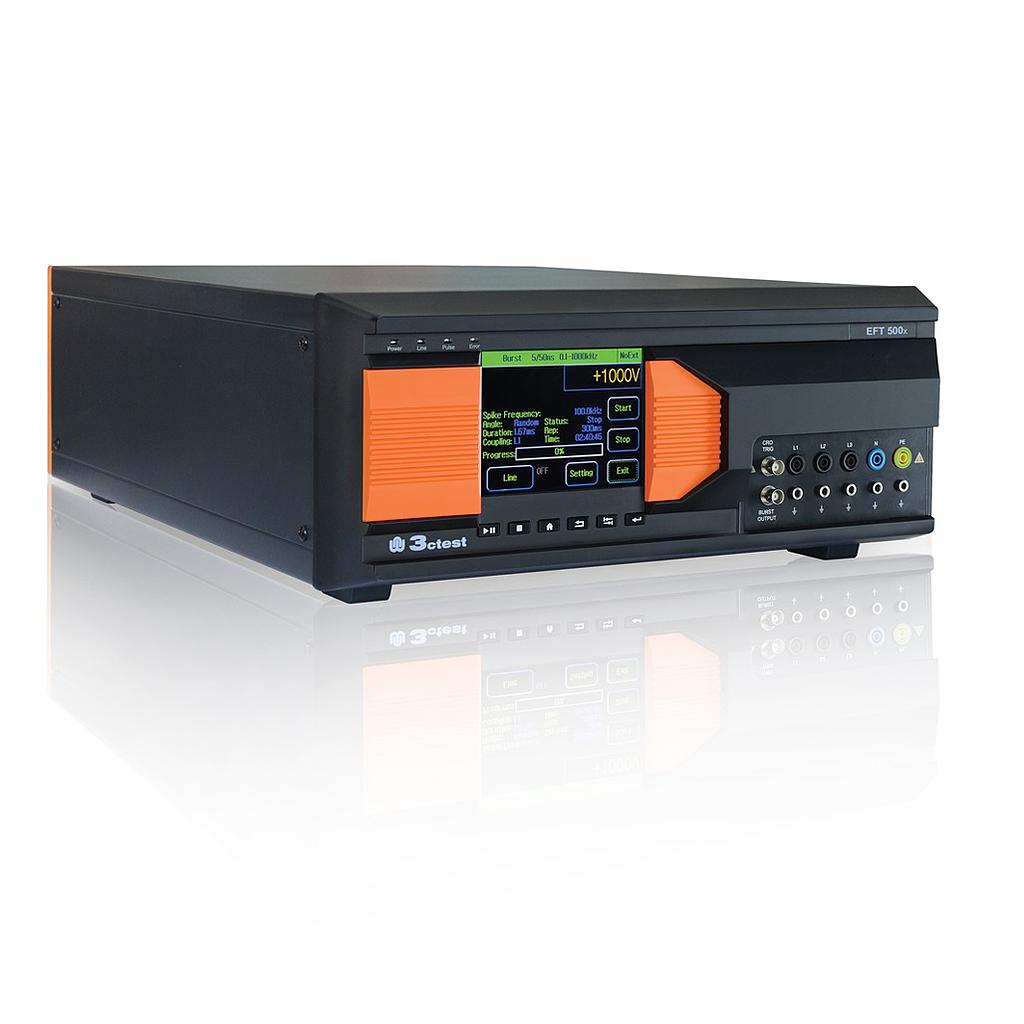

3ctest EFT500T EFT/突发模拟器 (AC 110V/220V,±10%,50/60Hz,±5%)

- General data:

Display screen: 5.7 inch TFT color touch screen

Working mains: AC 110V/220V，±10%，50/60Hz，±5% (default AC 220V 50Hz）

Fuse: 6A

Max. Power consumption: 200W

Memory space: Infinite（PC）

Communication mode: Ethernet, RJ45

Working indicator: LED, LCD front panel display

Size: 19 inch /4U

Weight: Approx. 23Kg

Temperature: 15–35℃

Humidity: 45%–75%

Air pressure range: 86kPa–106kPa

EFT/Burst test as per IEC 61000-4-4

- Burst module:

Test voltage: 0.25kV-4.8kV±10%

Polarity: +/-/alternative

Source impedance: 50 ohm

Pulse waveform: 5/50ns, 50 ohm 1000 ohm load

Rise time: 5ns±30%, 50 ohm load, 1000 ohm load

Pulse duration:

50ns±30%, 50 ohm load

50ns-15/+100ns, 1000 ohm load

Pulse frequency: 0.1kHZ-1000kHz

Burst duration : 0.075ms-750ms

Burst cycle: 11ms-9999ms

Test duration: 1s-9999s

Trigger mode: Automatic, manual or external

Synchronization: 0° - 360°, 1° step or random

Network attenuation ratio: <10% of setting voltage

Network:

EFT 500T built-in three phase CDN

AC 380V/16A; DC-1 220V/16A

Datasheet
