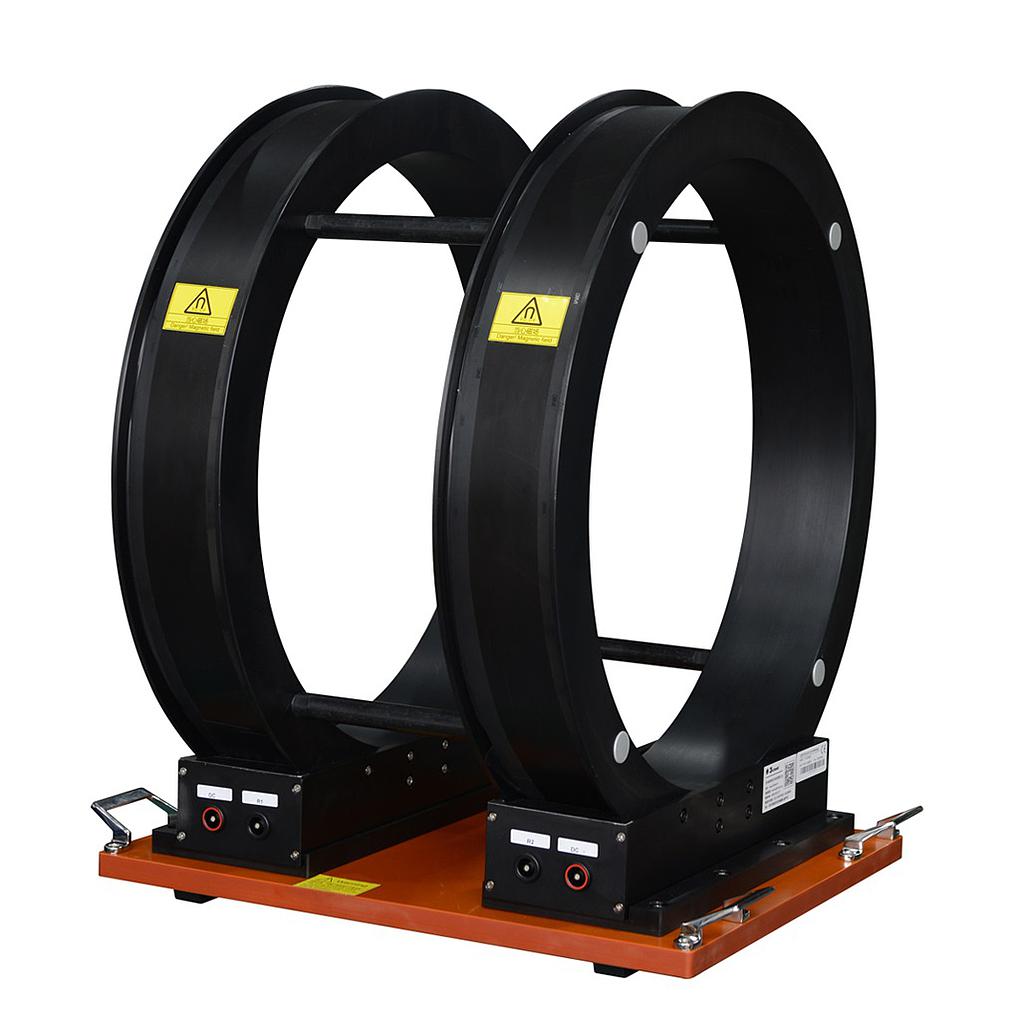

3ctest TYXH 06400 Helmholtz 线圈 (120 turns)

Total Coil Turns: 120 (60×2)

Max. Coil Current: 30 A, 5 min

Standard Current: 20 A, continuous

Max. Magnetic Field Strength: 4260 A/m@30 A, 5 min

Standard Magnetic Field Strength: 2856 A/m@20 A, continuous

Coil Factor: 43.1 dB A/m

Coil Diameter: 600 mm

Frequency Range: DC-30 kHz

Coil Total Inductance: ≤10 mH

DC Resistor: ≤1 Ω

Interface Type: 4 mm banana plug

Working Temperature: 0 ℃ ~ 65 ℃

Weight : 45 kg
