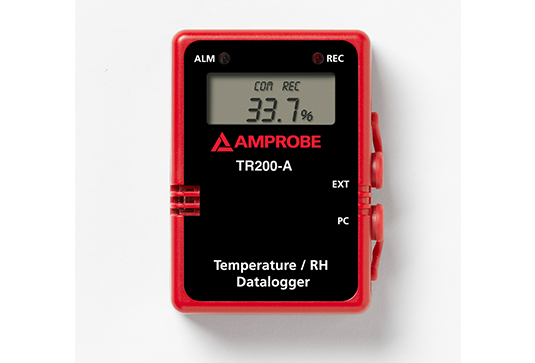

Amprobe TR200-A Temperature and Relative Humidity Data Logger (-40 °C ~ 85 °C, 99.9%)

Display: 3¾ digit liquid crystal display (LCD) with a maximum reading of 1999

Sampling points: 1K / 2K / 4K / 8K / 12K / 16K

Resolution: Temperature 0.1 °C / 0.1 °F

RH Resolution: 0.1 %

LED: Red: Hi, LO Alarm; Yellow: Record

Low battery indication: “Batt” is displayed when the battery voltage drops below the operating level

Auto power off: Approx. 10 minutes

Operating environment: -10 °C to 60 °C (14 °F to 140 °F), 0 to 100 %RH

Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F), 0 to 100 %RH

Measurement ranges:

Internal sensor: -40 °C to 85 °C (-40 °F to 185 °F)

Measurement range: -10 °C to 60 °C (14 °F to 140 °F)

Relative Humidity: 0.0 to 99.9 %

Accuracy:

Temperature: ±0.6 °C (-20 °C to 50 °C); ±1.2 °C for others

Temperature: ±1 °F (-4 °F to 122 °F); ±1.2 °F for others

Relative Humidity: ±3 % at 25 °C / 77 °F; ±5 % for others

Sensor: Silicon photodiode and filter

Altitude: 2000 m, indoor operation

Power supply: 1 × 3V coin battery IEC-CR2032

Battery life: 2 years with 7200-sec sampling rate

Dimensions: 75.5 × 53 × 23.5 mm (2.95 × 2.16 × 0.9 in)

Weight: 0.02 kg (0.044 lb)

IP Rating: IP65
