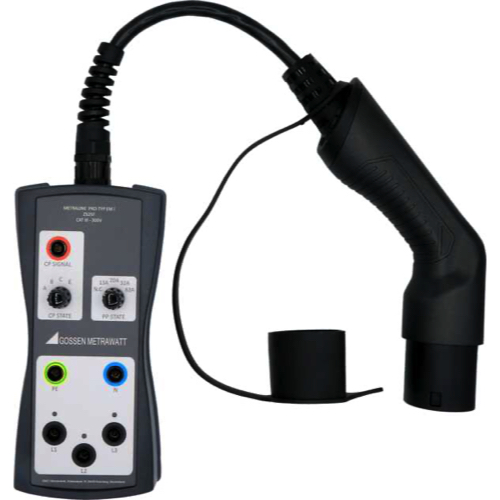

Application: Testing of AC electric vehicle charging stations (EVSE)
Standards: IEC 61851-1
Vehicle state simulation: State A, State B, State C, State E
Cable simulation (PP): 13 A (1.5 kΩ), 20 A (680 Ω), 32 A (220 Ω), 63 A (100 Ω)
Input voltage: Up to 400 V, 3-phase
Frequency: 50 Hz
Maximum load: 2.9 kVA
Measurement category: CAT III 300 V
Protection class: Class II
Test voltage: 3.5 kV AC
Protection degree: IP20
Operating temperature: −10°C to +45°C
Storage temperature: −25°C to +60°C
Relative humidity: Max. 80%, non-condensing
Dimensions: 105 × 210 × 53 mm
Total length with cable: approx. 750 mm
Weight: approx. 795 g
