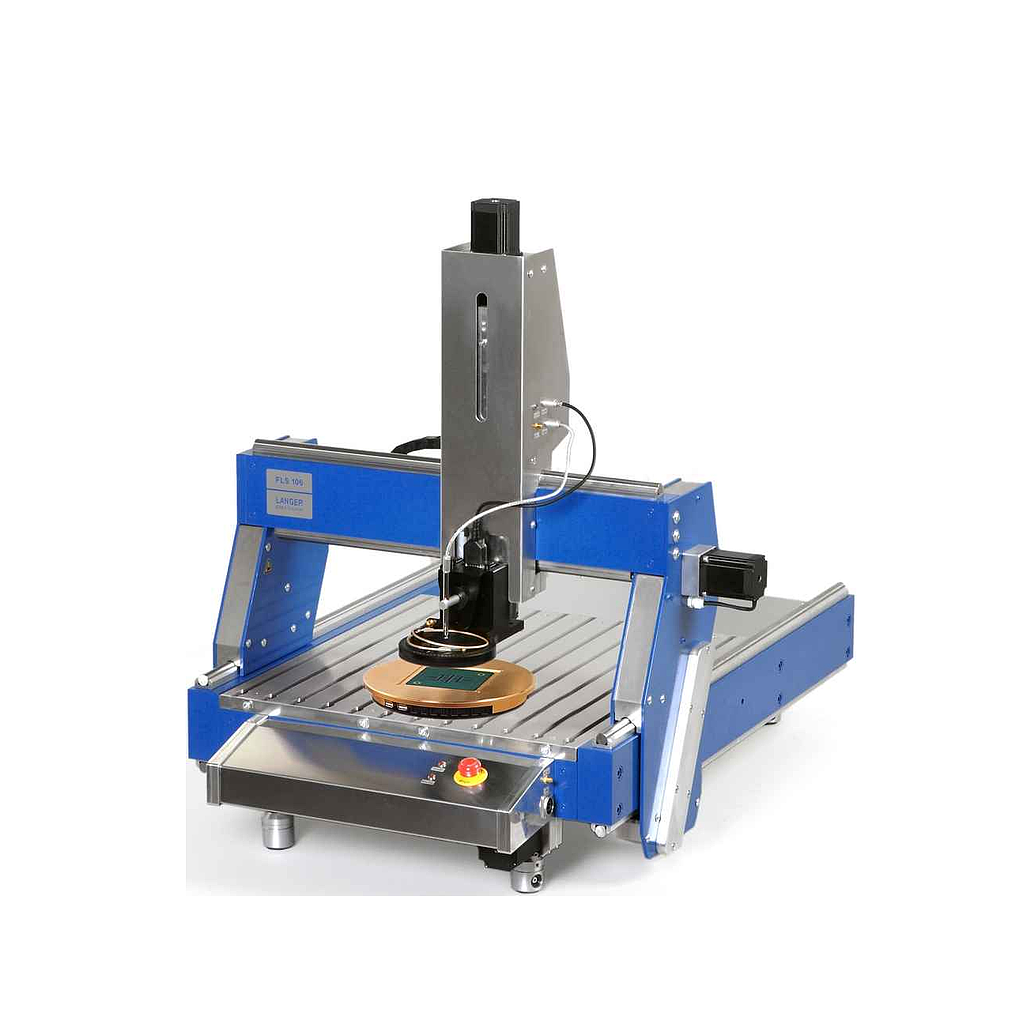

LANGER EMV-Technik FLS 106 IC set IC扫描仪4轴定位系统

Technical parameters

Supply voltage: 110 V / 230 V

Interface: USB

x, y, z axes

Max. traverse distance: (400 x 600 x 120) mm / α-Rotation ±180°

Min. positioning distance: (20 x 20 x 20) µm / α-Rotation 1°

Positioning speed: (20 x 25 x 10) mm/s / α-Rotation 90°/s

Weight: 75 kg

Sizes (L x W x H): (1030 x 775 x 900) mm

Scope of delivery

1x FLS 106 IC, 4-Axis Positioning System

1x CS-Scanner, ChipScan-Scanner Software / USB

1x GND 25, Ground Plane

1x DM-CAM, Digital Microscope Camera

1x Rotary unit, Rotary Unit

1x DM-CAM holder.3, Microscope Camera Holder

1x FLS 106 IC acc, Accessories for scanner

Short description

The FLS 106 IC scanner is a 4-axes positioning system that allows for the movement of ICR near-field probes along three linear axes and the rotation of the ICR near-field probes on one axis above an IC in its electronic assembly.

The ICR near-field probes allow for the measurement of high-frequency magnetic or E-fields up to 6 GHz with a high measuring resolution of 50 to 100 µm.

The IC scanner can be set up for surface scans and ESD or EFT immunity tests in a few simple steps.
