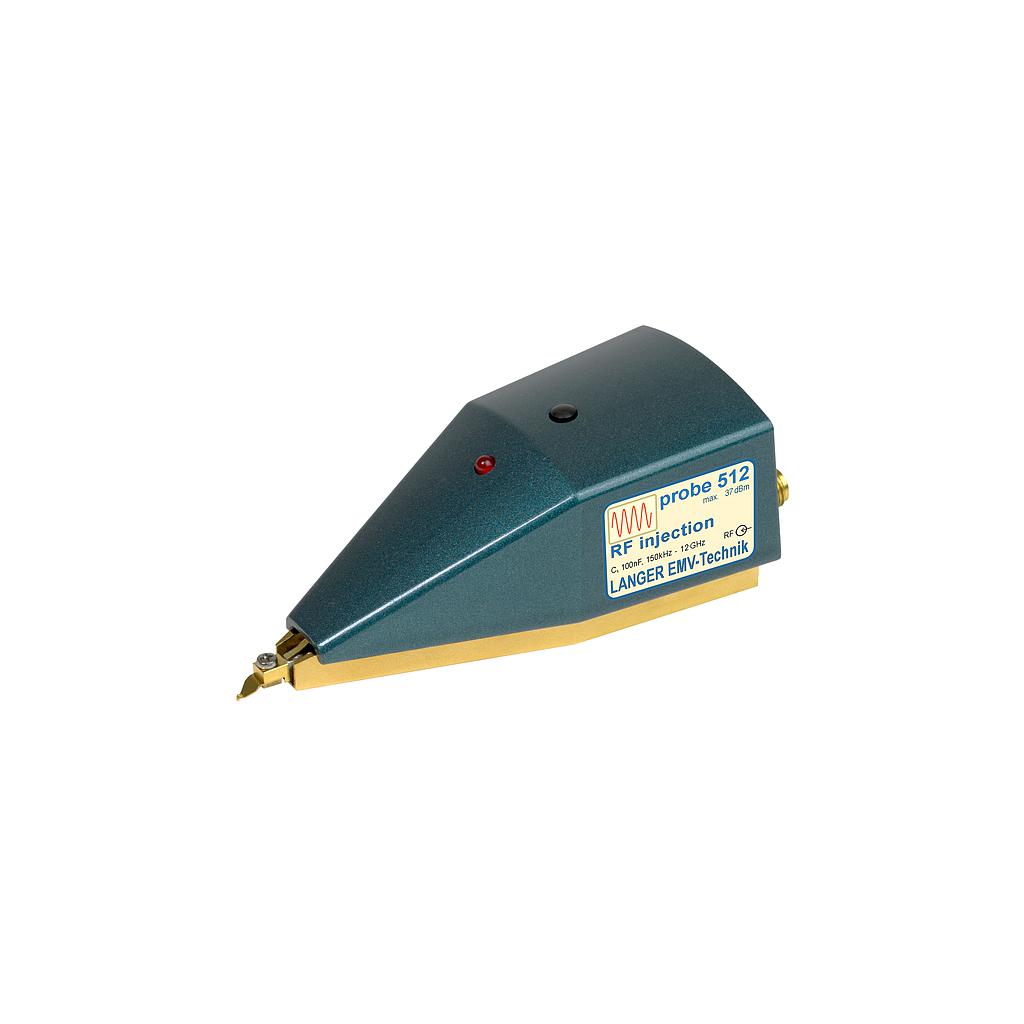

LANGER EMV-Technik P512 DPI Coupling Network and RF probe (12 GHz)

Technical parameters

Frequency range: ... 12 GHz

Insertion Loss: >-3 dB / 12 GHz

Input Matching: <-8 dB / 12 GHz

lower cut-off frequency: Dependent on selected coupling capacitance

Coupling capacity: 6.8 nF (selectable)

Supply voltage: 12 V / 10 mA

Max. input voltage RF: 5 W (37 dBm)

Connector - input: 50 Ω, SMA

Weight: 39 g

Sizes (L x W x H): (80 x 35 x 31) mm
