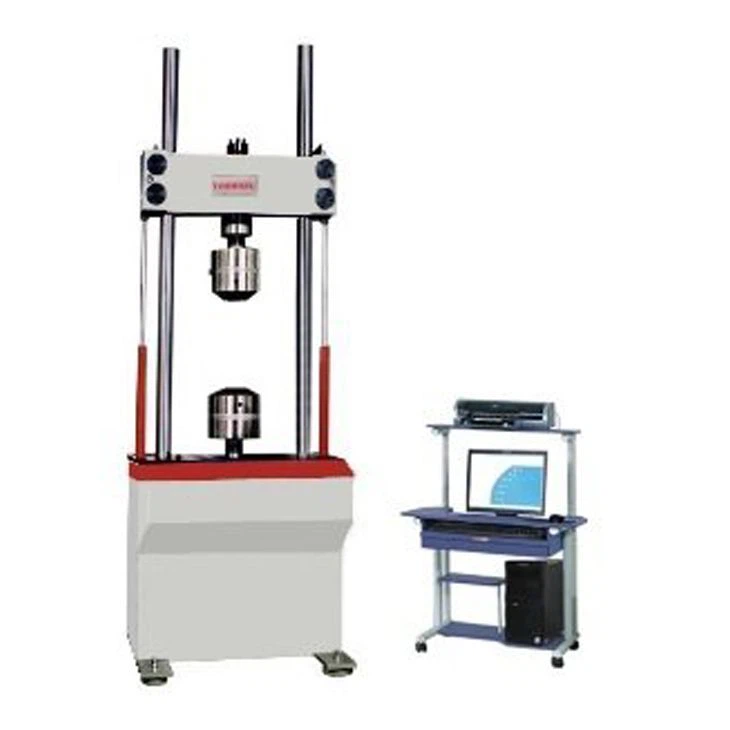

NAKE PWS-100G Servo Hydraulic Fatigue and Fracture Testing Machine (±100kN)

2.1 Test force unit:

Maximum dynamic and static test force: ±100kN;

Effective measurement range: 2%—100% FS regardless of the whole process;

Static test force indicating value accuracy: less than ±0.5%; dynamic test force indicating value accuracy: less than ±1.0%;

Average load fluctuation of test force: less than ±1%;

Dynamic load fluctuation of test force: less than ±2%;

2. 2 Displacement unit:

The maximum displacement of the system: not less than ±50mm (the total stroke is not less than 100mm);

Dynamic and static indicating value accuracy: ±0.5%FS;

2.3 Actuator indicators:

Actuator effective stroke: not less than ±50mm (total stroke not less than 100mm);

Maximum working pressure: 21MPa;

Maximum test force ±100KN;

Front flange connection, installed under the table

2.4 Test frequency: 0.1～50Hz;

2.5 Main test waveforms: sine wave, square wave, triangle wave, ramp wave, half-sine, half-triangle, various combination waveforms.

2.6 Pull pressure over zero hydraulic forced clamping wedge fixture

The clamping force can be adjusted;

Specimen clamping range: Flat specimen clamping jaws: 0-7mm, 7-14mm, 1 pair each; Round specimen clamping jaws: φ5-φ10mm, φ10-φ16mm, 1 pair each;

With prestressed adjusting ring;

2.7 Compression and other test accessories:

Diameter φ80mm;

Designed for use with hydraulic chucks;

Various test accessories (options) can be made according to user requirements;

2.8 Parameters of constant pressure oil source:

The constant pressure oil source adopts the parallel structure of double pumps, which can be controlled independently, with low energy consumption and low noise;

Pressure: 21Mpa;

Flow: 40L/min;

Power: 380V 15kW

The net volume of the fuel tank is 230L;

2.9 The main indicators of the controller

It adopts DL900 full digital servo control system,;

WinQuick single-channel dynamic and static test software was used.

The 900 control system adopts AMD520 interface processor and TI32-bit DSP control processor, and the software operating system is Win7.

Function generator frequency: 0.01～300Hz.

Control mode: displacement, load, strain three control modes, each control mode can be switched freely and smoothly.

Function generator waveform: sine wave, triangle wave, square wave, sawtooth wave, monotonic wave (ramp wave) and trapezoidal wave, etc.

Power supply: 220V, not higher than 2kW;

The conditioning unit has closed-loop control modes such as displacement, force, and deformation, and the control mode can be switched smoothly;

The typical value of static control accuracy is better than 0.5%FS, and the typical value of dynamic control accuracy is better than 1%FS;

Equipped with Chinese test software, test configuration files, test reports, calibration files, etc. with write protection;

Simple and elegant software interface, real-time display of test curves, such as time-displacement curve, time-load curve, displacement-load curve etc.

With test protection settings, load upper and lower limit protection, displacement upper and lower line protection can be set freely;

It automatically record test data, digital oscilloscope, digital voltmeter function.

2.10 Host Frame Parameters

Dimensions: about 1180mm×690mm×2300mm (length×width×height);

lCenter distance between columns: 580mm;

lMaximum adjustable test clear space: not less than 800mm;

lThe column is plated with hard chrome and polished

lUpper beam: hydraulic lifting, hydraulic locking

lTotal weight: about 1550kg;
