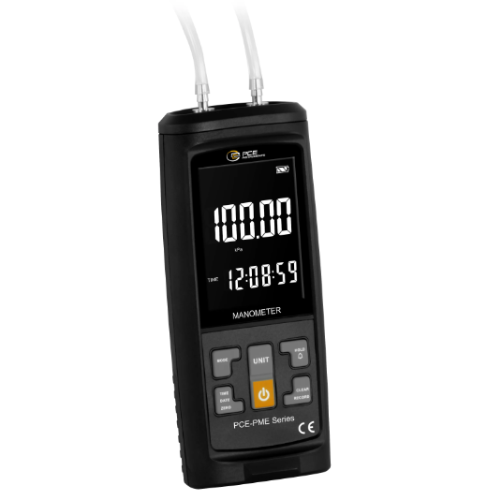

PCE PME 100 压力表 (-100 ... +100 kPa)

Differential pressure:

Measurement range up to:  -100 ... +100 kPa

Resolution:  0.01 kPa

Accuracy:  ±1 % FS

Differential pressure:

Measurement range up to:  -1 ... +1 bar

Resolution:  0.01 bar

Accuracy:  ±1 % FS

General technical data:

Measuring functions:  MIN, MAX, HOLD, AVG

Units:  inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O

Display type:  LC colour display

Storage medium:  Internal memory

Storage capacity: 15996 Measurements

Storage interval from:  1 s

Storage interval to: 9999 s

Interface:  USB-C

Operating time:  13 h

Automatic power-off from...to:  1 ... 99 min.

Automatic power-off can be deactivated : Yes

Alarm:  Acoustic

Alarm modes:  Above, below

Overpressure:  3 kPa

Menu language : English

Protection class (device):  IP20

Power supply:  5 V

Weight:  180 g

Operating conditions:  -10 ... 60 °C , 0 ... 95 % RH

Storage conditions:  -10 ... 60 °C , 0 ... 95 % RH

Capacity:  1000 mAh

Dimensions ( W x H x D ):  63 x 162 x 32 mm

Delivery Scope:

1 x Pressure Gauge PCE-PME 100

2 x hose approx. 25 cm

1 x USB-A - USB-C cable (mains adapter not included)

1 x carrying case

1 x PC software (in the download area)

1 x user manual
