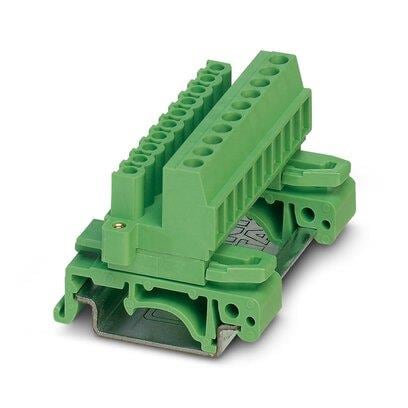

PHOENIX CONTACT 1859276 导轨端子排 UMSTBVK 2 5/12-STF-5

Pitch: 5.08 mm

Width: 71.08 mm

Height: 34.9 mm

Length: 42.5 mm

Unit Weight: 35.234 g

Current Rating: 12 A

Voltage Rating: 320 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 24 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 24 AWG to 12 AWG

Connection Method: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position
