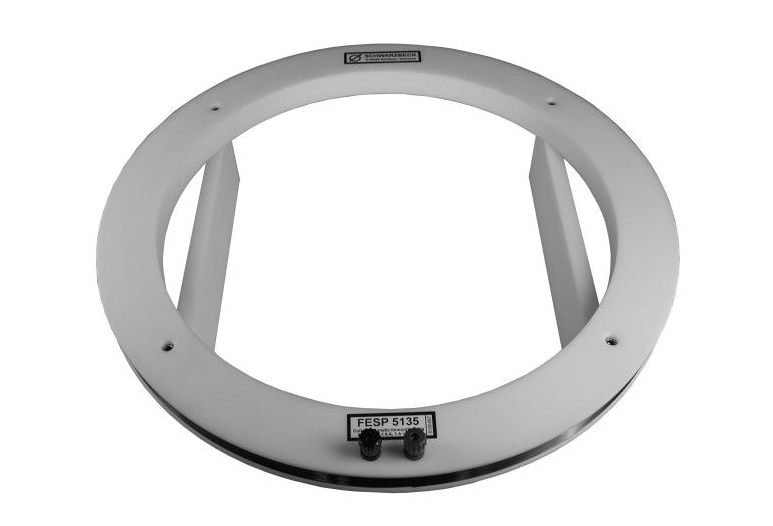

Schwarzbeck FESP 5135 Circular unshielded Coil (0 – 300 kHz, 0.5 m)

Medium coil diameter: 0.5 m

Number of turns: 20

Turn layers: 1

Mechanical Dimensions: 500 × 500 × 140 mm

Terminals: 4 mm

Usable Frequency Range: 0 – 300 kHz

Inductance: 485 µH

Resistance: 0.8 Ω

Capacitance: 45 pF

Resonance Frequency: ≈1 MHz

Magnetic Fieldstrength at 1 A coil current: 32.016 A/m

Magnetic Fieldstrength at 1 A coil current (dB): 30.1 dB A/m

Continuous Current: < 5 A

Maximum Current: 7 A (5 min)

Max. Magnetic Fieldstrength: 224 A/m (5 min)

Fieldstrength (cont. operation): 160 A/m

Weight: 5.2 kg

Spacer: 100 mm

 Datasheet
