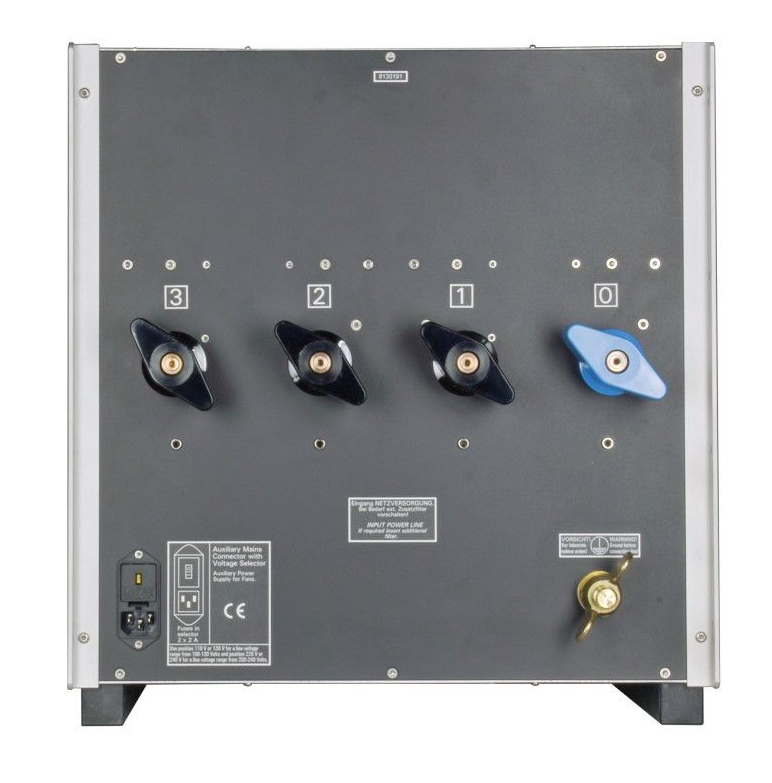

Schwarzbeck NNLK 8130 Line Impedance Stabilisation Network (150 kHz – 30 MHz, 4x 400 A)

Frequency range: 150 kHz – 30 MHz

AMN impedance: 50 µH || 50 Ω

Maximum continuous current (with fans activated): 4 × 400 A

Maximum voltage: 250 VAC, 50/60 Hz / 400 VDC

Maximum voltage (with option 400/700 V): 400 VAC, 50/60 Hz / 800 VDC (valid from S/N 218) Older devices: max. 630 VDC

Standard: CISPR 16-1-2

Connector for supply: Wing terminals 16 mm, removable

Connector for EUT: Wing terminals 16 mm, removable

Weight: approx. 55 kg

Dimensions (housing incl. wing terminals, W × H × D): 448 × 473 × 738 mm

Connector to EMI receiver: BNC socket, 50 Ω
