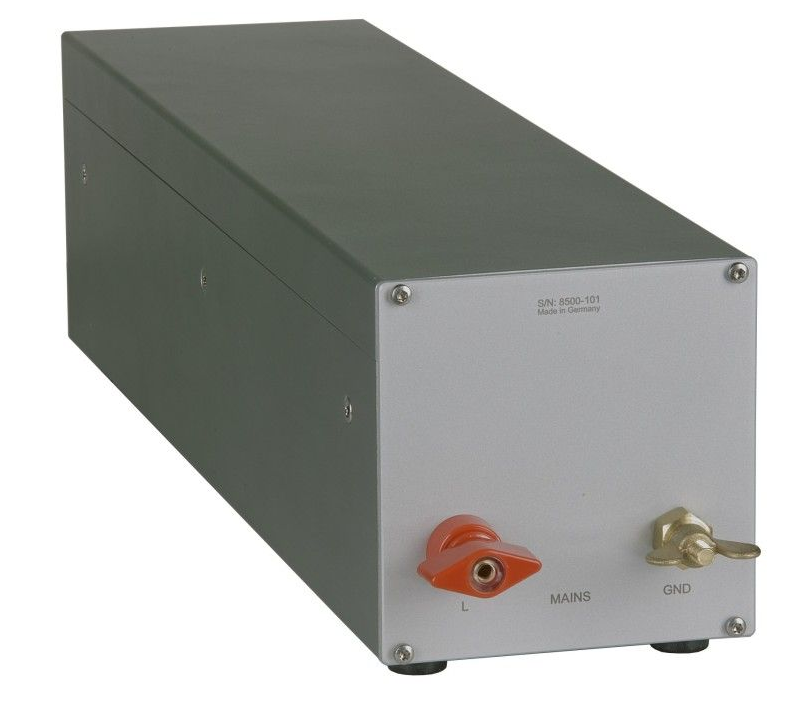

Schwarzbeck NPLC 8500 Line Impedance Stabilization Network (3 kHz – 148.5 kHz, 1 Ω)

Frequency Range: 3 kHz – 148.5 kHz

Connector DuT: 7 mm wing terminal

Connector AE/BIAS: 7 mm wing terminal

Connector for measurement device: BNC 50 Ω

Max. current: 16 Aₘₛ

Max. terminal voltage: 250 VAC / 50 Hz

Weight: 3800 g

AMN Impedance: 1 Ω

Voltage division factor EuT - BNC: 0…–6 dB

Dimensions incl. connectors (length × width × height): 105 × 105 × 410 mm

According to standard: ITU-T G.9901
