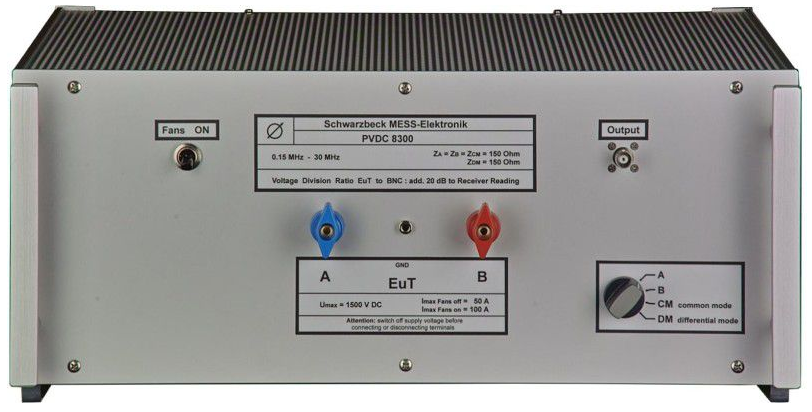

Schwarzbeck PVDC 8300 DC-AMN (LISN) (0.15 MHz – 30 MHz, 100 A)

Frequency Range: 0.15 MHz – 30 MHz

Max. continuous current: 100 A

Max. current (limited time, 4 min): 150 A

Max Voltage (DC): 1500 V

Common Mode Impedance (Mode switch CM, A, or B): (150 ± 30) Ω

Differential Mode Impedance (Mode switch DM): (150 ± 30) Ω

Phase at EuT-Terminals: (0 ± 40)°

Insertion loss (EuT – AE): > 20 dB

Longitudinal conversion loss: > 20 dB

Voltage Division Factor at the measuring port: Typ. (20 ± 3) dB (10:1)

Resistance (DC) with feed terminals shorted: 90 mΩ

EuT Connectors: Wing terminals

Dimensions (W × H × D): 448 × 191 × 470 mm

Weight: 15 kg
