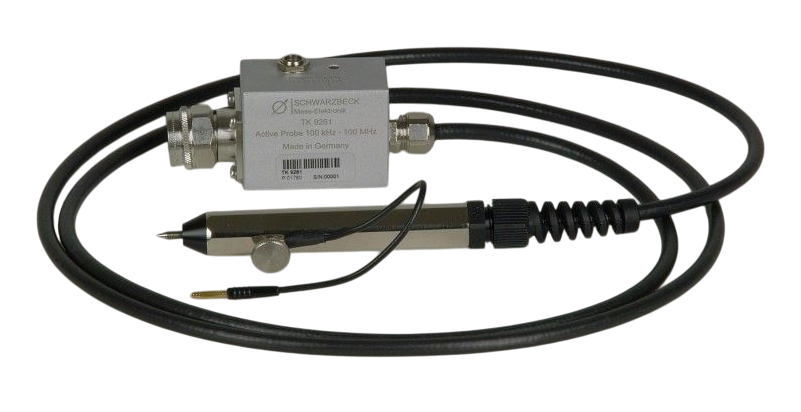

Schwarzbeck TK 9261 有源探头 (100 kHz – 100 MHz)

Nominal Frequency Range: 100 kHz – 100 MHz

Useable Frequency Range: 50 kHz – 700 MHz typ.

Input damping resistance: >100 kΩ

Input capacitance: 1.8 pF typ.

Output impedance: 50 Ω

Gain: 0 dB

Maximum output level: 1.4 V peak

Maximum input d.c. level: 500 V

Maximum input a.c. level: 10 Vₚ₋ₚ

Output: N-Stecker (N-plug)

According to: RENAULT 36-00-808

Power supply: +12…15 V, 50 mA

DC-connector: 5.5 mm / 2.5 mm

Ambient temperature: –10°C … +60°C

Weight: 300 g
