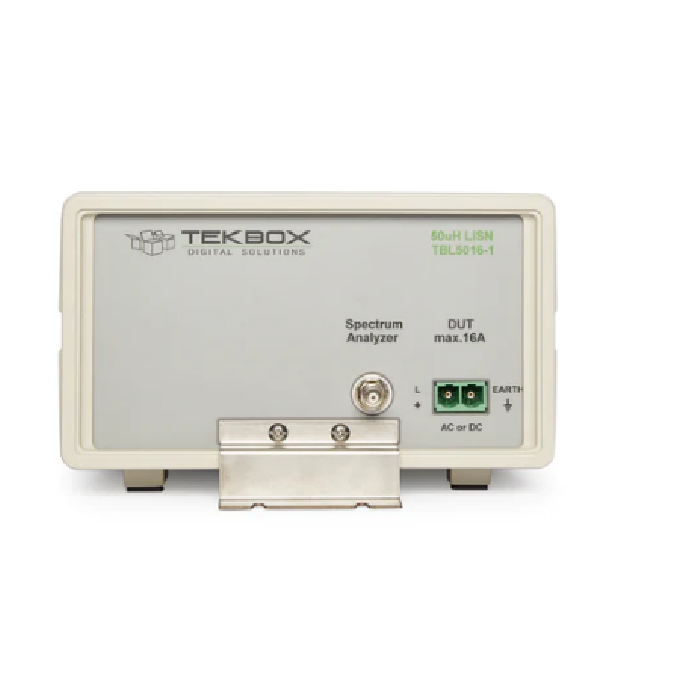

LISN type: V-AMN, configurable as 50Ω/50µH+5 Ω or 50Ω/50µH
Frequency range: 9 kHz – 100 MHz
DC Resistance: < 45 mΩ
Maximum current: 16A continuous
Operating voltage range: 0 – 250V DC; 0 - 250V AC (50/60 Hz), 0 – 120V AC (400 Hz)
Fuse: 2 x 16A slow
High current plug/screw terminals - male: Phoenix Contact 1998933, female: Phoenix Contact 1967375
Dimensions: 250 mm x 225 mm x 140 mm (including ground brackets)
weight: 2.7 kg
