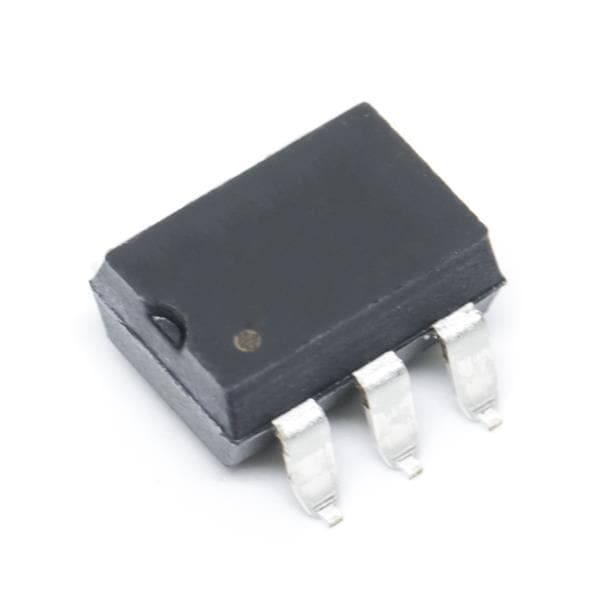

Vishay General Semiconductor VOT8025AB-T1 三端双向可控硅和硅控整流器输出光耦合器 零交叉 800V Vrdm 100mA SMD6；5300V Vrms
有库存: 0 个
快速支持
直接联系认证专家
直接联系认证专家
Output Type: PhotoTriac
Mounting Style: SMD/SMT
Isolation Voltage: 5300 Vrms
Number of Channels: 1 Channel
If - Forward Current: 20 mA
Vf - Forward Voltage: 1.2 V
Zero-Crossing Circuit: With Zero-Crossing Circuit
Zero-Crossing Voltage: 5 V
Pd - Power Dissipation: 250 mW
Maximum Trigger Current: 5 mA
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
On-State RMS Current - It RMS: 100 mA
Off-state Output Voltage - VDRM: 800 V
Maximum Continuous Output Current: 100 mA
