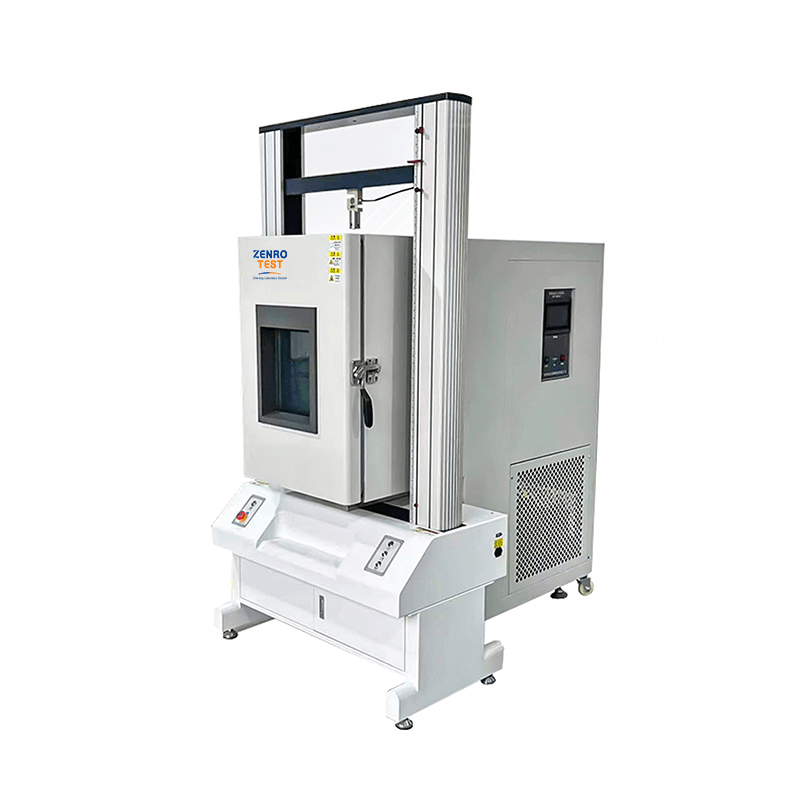

Zenro Test ZR-LL-54 High Temperature Universal Material Testing Machine

Inner Chamber Dimensions (W*D*H): 300*300*600 mm

Overall Dimensions (W*D*H): 980*700*800 mm

Test Environment Conditions: Ambient temperature : +5~+28℃； Relative humidity: ≤85%;   No sample inside the test chamber

Test Method: GB/T 5170.2-2008 Temperature Test Equipment

Temperature Range: Temperature Range: Room Temperature ~ +200℃

Control Accuracy: Temperature: ±0.3℃

Temperature Fluctuation: ≤1℃ （1/2 x (Tmax - Tmin) at center point)

Temperature Error: Temperature Error: ≤±1℃

(The difference between the average temperature displayed by the working chamber temperature controller and the average measured temperature at the center point)

Temperature Uniformity: Temperature Uniformity: ≤3.0℃

(Temperature uniformity is the arithmetic mean of the differences between the maximum and minimum measured temperatures in each test)

Heating Time: Heating Rate: 3℃/min (non-linear, no load)

Cooling Time: Cooling Rate: 0.8~1℃/min (non-linear, no load)

Power Supply: Voltage Range: AC 220±20V
