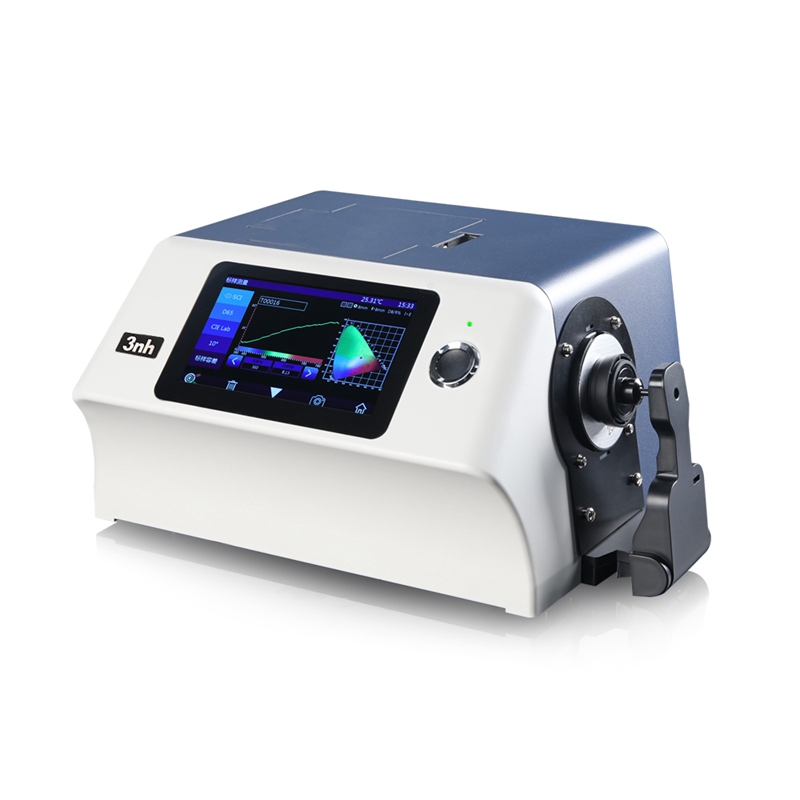

3nh YS6020 Xenon Lamp Benchtop Spectrophotometer (360~780nm; 10nm)

Integrating Sphere Size: Φ154mm

Light Source: 360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp

Spectrophotometric Mode: Concave Grating

Sensor: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 360-780nm

Wavelength Interval: 10nm

Semiband Width: 10nm

Measured Reflectance Range: 0-200%

Measuring Aperture:

- Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;

- Transmissive: Φ30mm/Φ25mm;

- Remark: 1. Automatic identification of switch caliber   2. Customized Configuration caliber and lens position

Dimension: 370×300×200mm

Weight: Approx 9.6kg

Power: AC 24V, 3A Power adapter power supply

Illuminant Life Span: 5 years, more than 3 million times measurements

Displayed Data: 7" TFT Capacitive Screen-touch Display

Data Port: USB & Print serial port

Data Storage: Standard 2000 Pcs, Sample 20000 Pcs

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment:  -20~50℃, 0~85%RH (no condensing)


Standard Accessory: Black Calibration Board, Standard calibration plate, Sample Holder, Φ4mm, Φ8mm, Φ25.4mm Aperture, Fixing frame,Transmission blackboard, ; Power Adapter,USB Cable, User Guide, PC Software

Optional Accessory: Micro printer, transmission test component, micro hole (4mm) , transmission component, instrument inversion component
