Advance Devices ST5S LCR LED测试仪

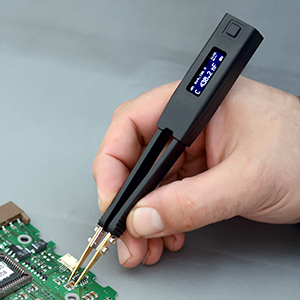

Smart Tweezers™ LCR meter allows you to test various component types, including secondary components of Dissipation Factor (D), Quality Factor (Q).

This handheld also includes other functions that result in a more detailed component analysis.

The built-in Equivalent Series Resistance (ESR) mode helps you better understand the inherent  resistance – behavior typically found in capacitors across selected frequencies

In its DIODE mode Smart

Tweezers™ tests diode polarityand indicates if it is short.

Smart Tweezers™ has a continuity detector. Variable beeper sounds for resistance reading below set thresholds. Additionally, this function helps to locate shorted conductors (e.g. on a PCB).

In manual modes Smart Tweezers™ measures a specific circuit parameter — L, C, R, Z or ESR. Manual modes also improvecomponent type identification foin-circuit tests.

Variable test signal output from 0.5 to 1.0 Vrms allows to improve test precision in different situation

e.g. for in-circuit measurement and loose leaded ceramic capacitors.

Technical Specifications:
- AC test mode Test frequency: 1 kHz, 10 kHz, 120 Hz, 100 Hz
- Test frequency accuracy: 50 PPM  (0.005%)

- Test signal level: 0.5/1.0 +/- 5% Vrms Sine wave

- Source impedance: 100Ω  +/- 1%

Measurement Ranges:

- Resistance R: 0.05 Ω to 9.9 MΩ
- Capacitance C: 0.5 pF to 4999 μF

- Inductance L: 0.5 uH to 999 mH

- Quality factor Q: 0.001 to 1000

- Dissipation factor D: 0.001 to 1000

Physical Specifications:

- Size : 15.0 x 1.8 x 1.5 cm (5.9 x 0.7 x 0.6 in)

- Weight: 29 grams (0.06 lb)

- Operating temperature: 0°C to 50°C

- Battery Type: 3.7V LiPO rechargeable 180mAH

- Battery Life (continuous): 20 hours, 3 hours charging cycle
