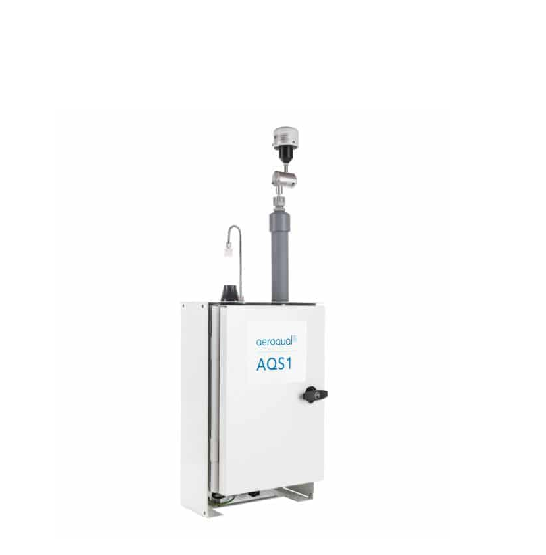

AQS 1 Aeroqual 空气质量监控设备/ 湿度/ VOC

  • 制造商: Aeroqual
    Model: AQS 1
    来源: New Zealand
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Control System: Embedded fanless PC (Intel Celeron® N3350, 1.1GHz, dual core, 4GB RAM, 32GB SSD hard drive), Ubuntu Linux Operating System

Communications: Standard: WIFI, Ethernet (LAN) Optional modem: Cellular IP 3G HSPA or 4G LTE


Aeroqual Connect instrument operating system.

Aeroqual Cloud instrument monitoring, management and technical support via secure cloud servers, accessed via web browser (IE,

Firefox, Chrome, Safari).

• Cloud standard features; configuration, calibration, diagnostics, remote technical support.

• Cloud optional features; text (SMS) and email alerts, 3rd party sensor measurements, full data visualisation with charts, wind and

pollution roses, data reporting with auto data export via FTP and API, full instrument event journal capture.

Data logging: 32 GB Hard Drive (> 5 years data storage)

Outputs: 2 x Relay (optional), 4 x 4-20mA (optional)

Averaging period: 1 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr

Power requirements: 100-260 VAC (standard): 36.6aW / 31.3b W Regulated 12 VDC (if required): 40.3a W / 34.3bW

Enclosure: Lockable IP65 GRP cabinet with integrated aluminum solar shield armor

PM Sampling System

Inlet: Omni-directional 36 cm (14.1 inches) heated inlet; Optional sharp cut cyclones for PM10, PM2.5 or PM1 size selection

Pump: 12 V brushless DC diaphragm

Optics: 670 nm laser, near-forward scattering nephelometer with sheath air protection

Dimensions: 483 H x 330 W x 187 D mm (19 H x 13 W x 7.4 D inches)Includessolar shield armor & mounting brackets

Weight: < 13 kg (28.6 lbs)

Environmental operating range: -10 °C to +45 °C (14 °F to 113 °F)

Mounting: Pole, tripod and wall mounting brackets included47mm

Sample Filter (Optional): 47mm filter for particle loading analysis
