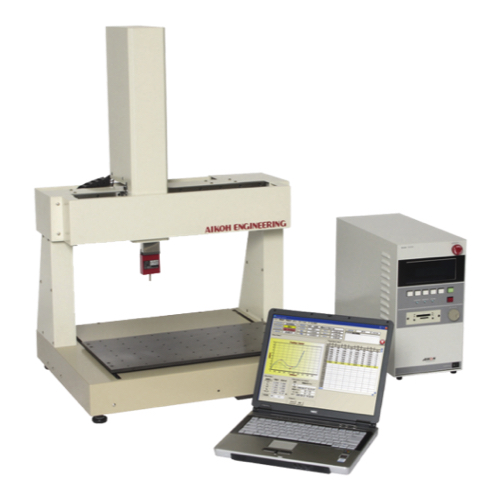

Aikoh GT-FL500 开关感觉测试仪 (50N (5kgf), X: 0～450mm; Y: 0～200mm)

Z axis (test) specifications

Max. force: 50N (5kgf)

Drive method: AC servo motor

Control motion: Up/down

Drive range: 0～200mm

Force measuring range: 0～50N (0～5kgf)

Force resolution: 0.001N (1mN)

Force accuracy: Depends on the load cell used.

Detector: Rotary encoder

Displacement measuring range: 0～200mm

Displacement resolution: 0.001mm

Display accuracy: ±0.05mm

Test speed range: 0.1～50mm/min

Moving speed range: 1～15mm/sec.

Analog output: ±10 V (force, displacement)

Dimensions: W750 x D560 x H900 mm

Mass: Approx. 50kg

Power supply: AC100V/AC200～230V

X-Y axes (move) specifications

Drive method: Stepping motor

Control motion: X: Right/left, Y: Front/back

Drive range:

 X: 0～450mm

 Y: 0～200mm

Detector: Rotary encoder

Displacement resolution: 0.01mm

Display accuracy: ±0.1mm

Moving speed range: 1～30mm/sec.

Sample table size: W480 × D280 mm

Sample carrying mass: Approx. 20kg

Standard set: Tester, Model 1013Ⅱ, load cell 1 piece, dedicated software

Options: Personal computer(English or Japanese), additional load cell, jig/fixture
