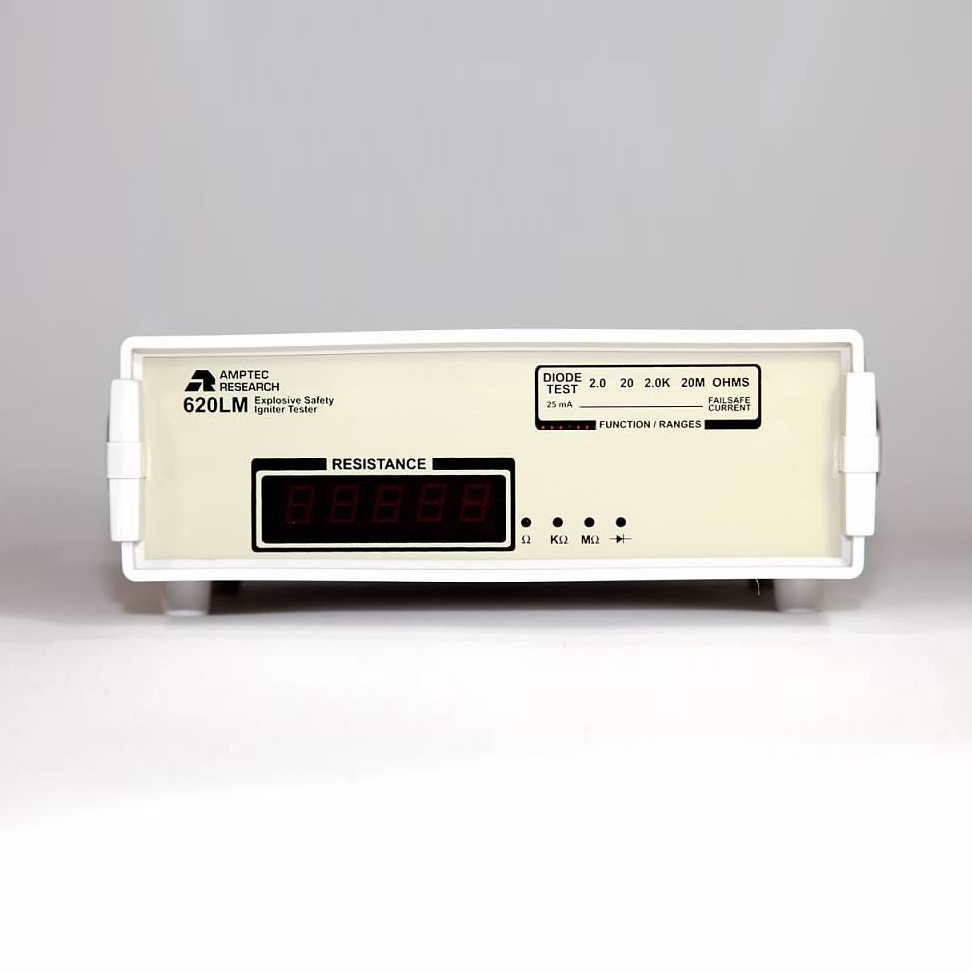

Amptec 620LM 具有二极管测试功能的故障安全点火器测试仪 (2Ω, 200 KΩ,Diode)

Range: 2 Ω

Nominal Current: 5 mA

Failsafe Current: 8 mA

Resolution: 100 uΩ

Accuracy: ± .02% of reading & of range

Range: 20 Ω

Nominal Current: 5 mA

Failsafe Current: 8 mA

Resolution: 1 mΩ

Accuracy: ± .02% of reading & range

Range: 2 KΩ

Nominal Current: 50 uA

Failsafe Current: 8 mA

Resolution: 0.1 Ω

Accuracy: ± .02% of reading & of range

Range: 20 KΩ

Nominal Current: 5 uA

Failsafe Current: 8 mA

Resolution: 1 Ω

Accuracy: ± .02% of reading & of range

Range: 200 KΩ

Nominal Current: 0.5 uA

Failsafe Current: 8 mA

Resolution: 10 Ω

Accuracy: ± .02% of reading & of range

Range: 20 MΩ

Nominal Current: .01 uA

Failsafe Current: .015 uA

Resolution: 1K Ω

Accuracy: ± 2% of reading & ± .2% of range

Range: Diode

Nominal Current: .5 mA

Failsafe Current: 25 mA

Resolution: –

Accuracy: –

Display: 4 1/2 digit LED

Terminals: 4-wire Kelvin

Accurate Temperature Range: 0° to 50° C

Update: 3/sec.

Temperature Coefficient: ± .002% per 15° C

Operating Temperature Range: 0° to 50° C

Dimensions: 9″ x 10″ x 3″

Weight: 8 lbs.

Power: 4 ea rechargeable 5AH NICAD batteries

Max. Input Voltage: 250 VDC

Open Circuit: 1.6 VDC

Max. Failsafe Current: 8 mA
