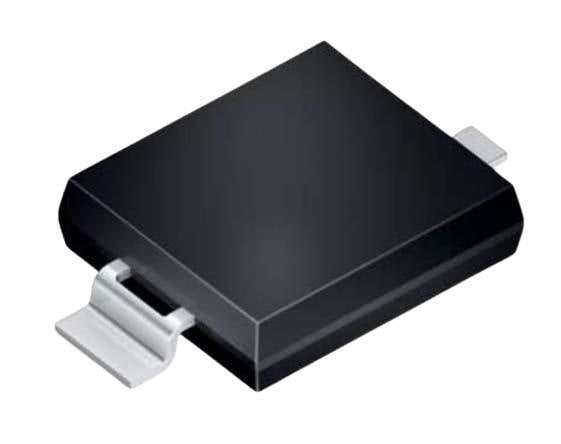

ams OSRAM BPW 34 FAS-Z 硅PIN光电二极管 PHOTODIODE SMT
制造商: ams OSRAM Model: BPW 34 FAS-Z - 联系
Width: 4 mm
Height: 1.2 mm
Length: 4.5 mm
Fall Time: 20 ns
Rise Time: 20 ns
Unit Weight: 43 mg
Dark Current: 2 nA
Photocurrent: 50 uA
Responsivity: 0.65 A/W
Qualification: AEC-Q101
Mounting Style: SMD/SMT
Peak Wavelength: 880 nm
Moisture Sensitive: Yes
If - Forward Current: 100 mA
Vf - Forward Voltage: 1.3 V
Vr - Reverse Voltage: 16 V
Pd - Power Dissipation: 150 mW
Half Intensity Angle Degrees: 60 deg
Noise Equivalent Power - NEP: 3.9E-14 W/sqrt Hz
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
