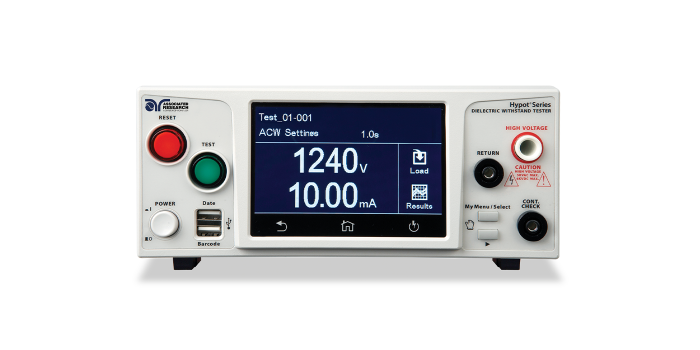

ARI Hypot® 3805 电气安全测试仪 (5 kV-20 mA 交流高压测试仪, CE认证)

AC Hipot

Voltage Output = 0-5000VAC

Leakage Current Limits = 0.00-20.0mA

Output Frequency = 50/60Hz

Ground Continuity

Current = DC 0.1A ± 0.01A, fixed

Resistance Limits = 0.0Ω-1.50Ω

Dimensions (W x H x D): 8.5" x 3.5" x 11.9" (215 x 88.1 x 300 mm)

Weight: 12 lbs (5.46 kg)
