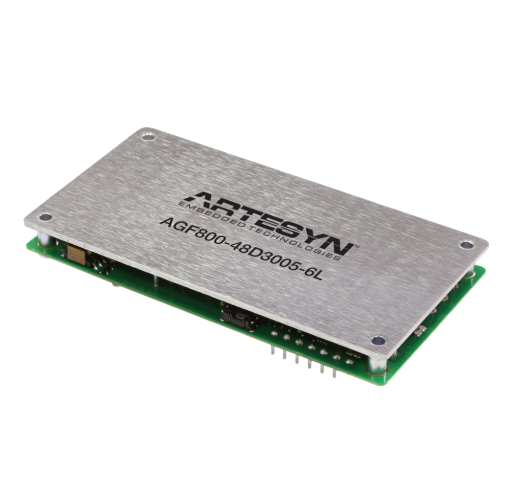

Artesyn AGF800-48D3005-6L 隔离直流转换器,RF应用 (30V/23.3A; 5V/20A; 800W)

Input range 36 - 75 Vdc

Efficiency 93.5%

Max input voltage - Continuous: 80 Vdc

Max input voltage - Non-continuous: 100 Vdc for 100 mSec

Output 1 voltage: 30 V nominal

Output 1 current: 23.3 A

Output 1 trim range: 22 V - 33 V

Output 2 voltage: 5 V nominal

Output 2 current: 20 A

Output 2 trim range: 3 V - 6V

Voltage tolerance: +/-1%

Line regulation: 0.5%

Load regulation: 30 Vo: 0.5%; 5 Vo: 1%

Noise/ripple: 30 Vo: 250 mV; 5 Vo: 100 mV

Operating ambient temperature range: -40 °C to + 85 °C

Storage temperature: -55 °C to +125 °C

Humidity: 5% to 95% (non-condensing)

Power: 800W

Detail

Datasheet
