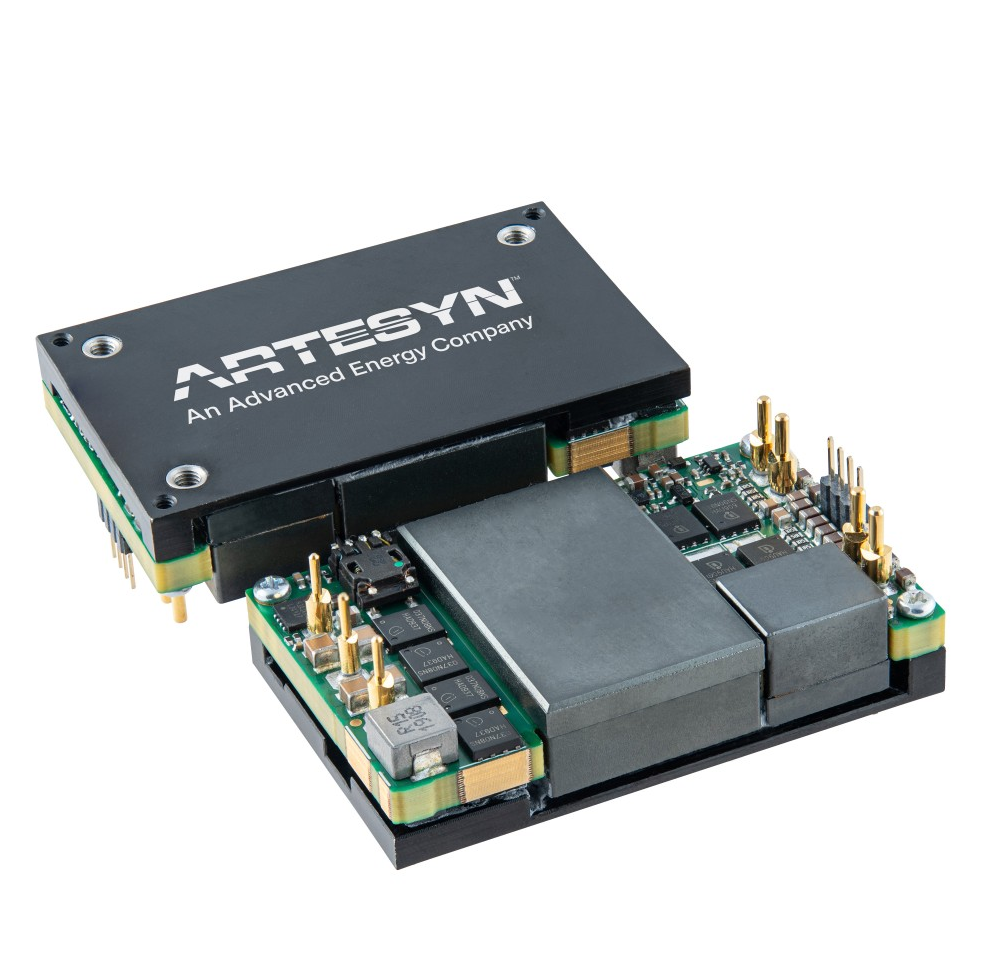

Artesyn BDQ1300-48S12B-4LI 四分之一砖隔离DC-DC转换器 (12.15V; 107A; 1300W)
制造商: Artesyn Model: BDQ1300-48S12B-4LI - 报价要求
- 报价要求
- 联系
Input range: 40-60 Vdc
Efficiency (50% load): 97.7%
Factory set voltage: 12.15 Vdc
Output voltage total regulation: 8.85~12.55 Vdc
Load regulation: 120 mV max
Noise/ripple: 200 mV
Output current: 107 A
I/O isolation (input to output): 800 Vdc
Operating ambient temperature range: -40 °C to +85 °C
Storage temperature: -55 °C to +125 °C
Humidity: 5% to 95% (non-condensing)
Output Voltage: 12.15 Vdc
Delivers up to 1300 W
