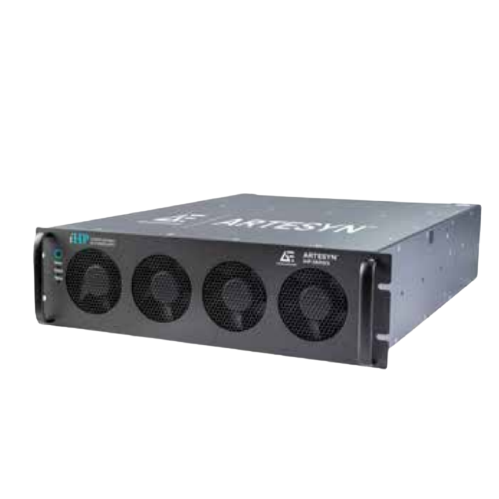

Artesyn iHP12H3A 模块化大功率电源系统 (342VAC~ 528VAC, 三相)

Input Parameter: 19” Rack 12 KW strapped as 3-phase 380/480 Vac Nominal

Input range: 342 Vac to 528 Vac (Nominal rating 380/480 Vac)

Number of phases: 3-phase (Wye or Delta) 4-wire total (3-phase and 1 protective earth ground)

Frequency: 47-63 Hz

Max current/phase:

23 A at 342 Vac

19 A at 432 Vac

Current inrush: 2.5 x Max input current

Power factor: > 0.99 at full load and nominal line

Standby voltage: 5 V

Standby regulation: 4.75 - 5.25 V

Standby max current: 1 A


>> Please check out all the information in the datasheet for the suitable options
