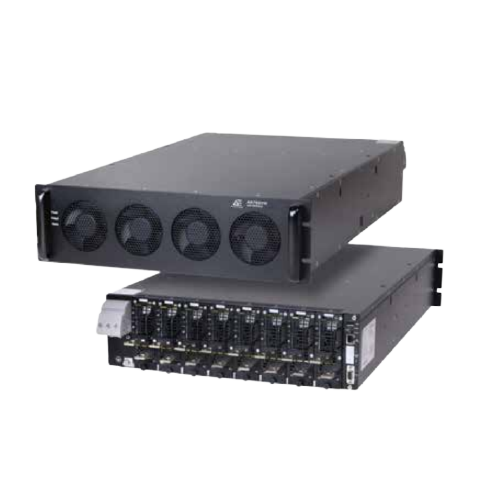

Artesyn iHP24C3A Modular High Power System (540VAC~660VAC, 3-phase)
制造商: Artesyn Model: iHP24C3A - 报价要求
- 联系
Input Parameter: 19” Rack 24 KW strapped as 3-phase 600 Vac Nominal
Input range: 540 Vac to 660 Vac (Nominal rating 600 Vac)
Number of phases: 3-phase Wye 5 wire total (3-phases, neutral and protective earth ground)
Frequency: 47-63 Hz
Max current/phase: 29 A at 312 Vac
Current inrush: 2.5 x Max input current
Power factor: > 0.98 at full load and nominal line
Standby voltage: 5 V
Standby regulation: 4.75 - 5.25 V
Standby max current: 1 A
>> Please check out all the information in the datasheet for the suitable options
