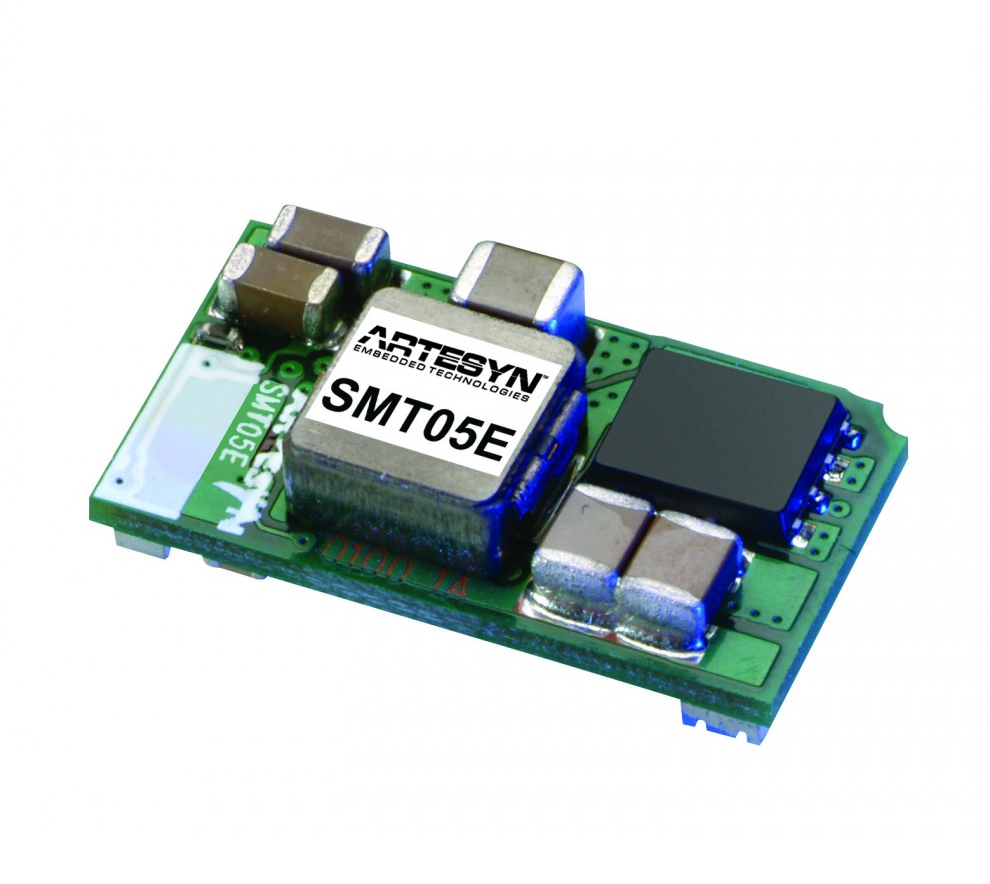

Artesyn SMT05E-05W3V3J 19.9 Watt 非隔离DC-DC转换器 (3.63V; 5A; 18.15W)

Input voltage range: 3.0 - 5.5 Vdc

Output Power (Max.): 18.15 W

Output Voltage: 0.75 - 3.63 Vdc

Output Current (Min.): 0 A

Output Current (Max.): 5 A

Efficiency (Typical): 94%

Ripple and noise (5 Hz to 20 MHz): 75 mV pk=pk; 25 mV rms

Regulation Line: ±1.0%

Regulation Load: ±1.0%

Output setpoint accuracy: ±0.4%

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Weight: 2.8 g (0.10 oz)

Dimensions (L x W x H): 20.32 x 11.43 x 6.70 mm

Details

Datasheet
