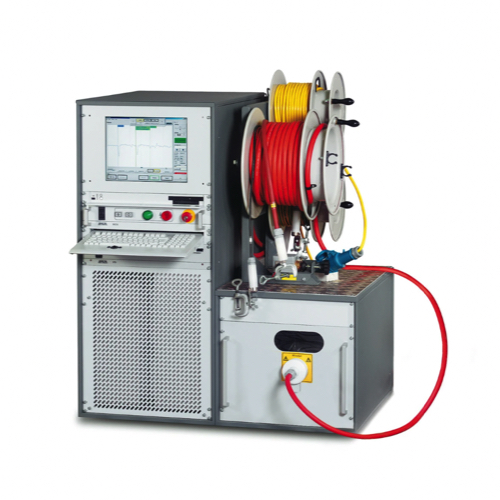

BAUR PHG 70 TD PD VLF诊断系统 (0 – 38 kVrms)

Partial discharge testing PHG 70 TD PD

VLF truesinus®: 0 – 38 kVrms

Theoretical measurement range: 10 – 12,800 m (at v/2 = 80 m/μs)

Velocity of propagation (v/2), adjustable: 50 – 120 m/μs

Sampling rate: 100 MSamples/s (10 ns)

PD measurement range: 1 pC – 100 nC

Accuracy: Approx. 1% of cable length

Resolution: 0.1 pC / 0.1 m

Calibrator

Electrical charge (pulses)

CAL1B: 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 nC

CAL1E: 0.5 / 1 / 2 / 5 / 10 / 20 / 50 nC

Power supply: 9 V block battery, DIN/IEC 6F22

BAUR Software 4

Information about the BAUR Software 4 and the system requirements can be found in the data sheet for BAUR Software 4 cable testing and diagnostics.

General

Display: TFT monitor acc. to quotation

Power supply:

200 – 260 V, 50/60 Hz

Option: 100 – 140 V, 50/60 Hz with auto transformer

Max. power consumption: 3,500 VA

Ambient temperature (HV generator): -20°C to +55°C

Storage temperature (HV generator): -30°C to +70°C

Relative humidity: > 90%, non-condensing

Dimensions (W x H x D) (HV generator): Approx. 483 x 623 x 775 mm

Weight

HV generator: Approx. 160 kg

Total: From 250 kg (depending upon equipment)

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

The standard delivery depends on the quotation.
